Suspension clamp
- Model NO.:
- HC ,PS
- Delivery:

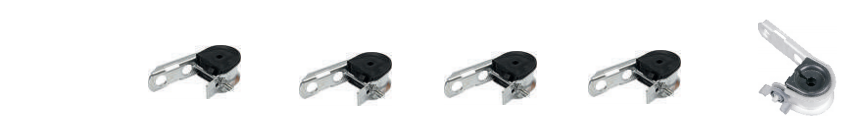

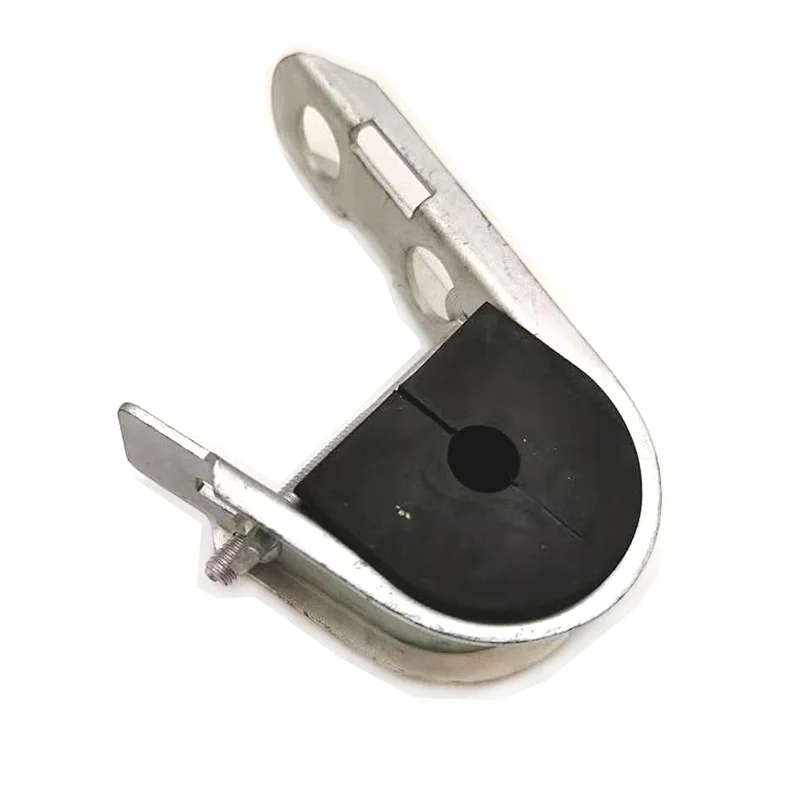

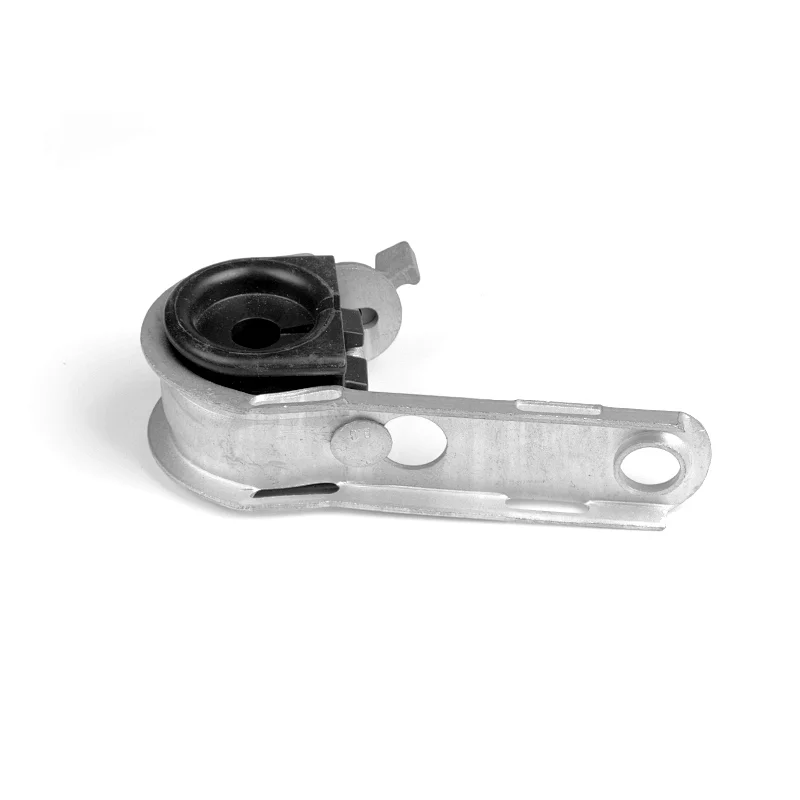

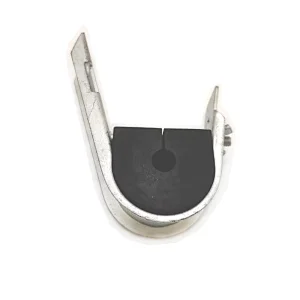

Suspension clamp for ADSS cable
| Models: | HC 5-8 | HC 8-12 | HC 10-15 | HC 15-20 | PS-615ADSS |
| Cable diameter(mm): | 5~8 | 8~12 | 10~15 | 15~20 | 6~15 |
| Min tensile (kN): | 1KN or 4kN | 1KN or 4kN | 1KN or 4kN | 1KN or 4kN | 6kN or 15kN |
| Max spans(m): | 30-50 | 30-50 | 30-50 | 30-50 | 150 |
| Remarks: |
Material：
Hot dip galvanized or Electro-zinc plating Hook and bolts
Flexible rubber /plastic core
