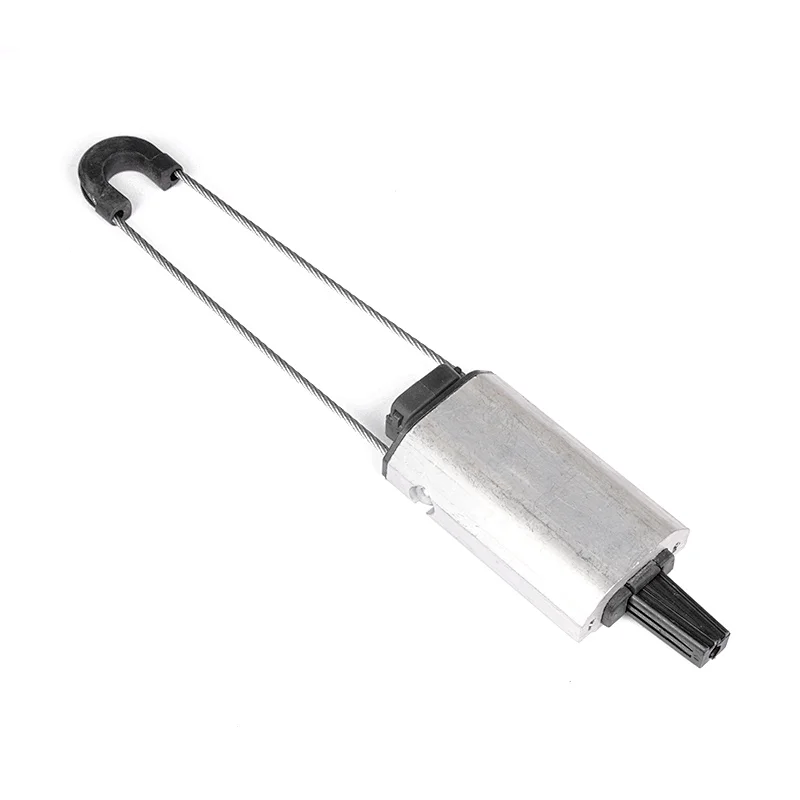

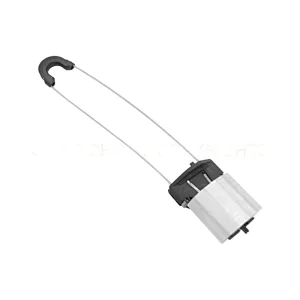

Anchor clamp for round ADSS Optical Cable
| Models | APA-25-* | PA-04-* | PA-1500-* | AC-PA120-* |
| Cable diameter(mm) | 3 ~ 7 | 3 ~ 6 | 3 ~ 7 | 10 ~ 12 |
| Min Tension (daN): | 600 | 300(600) | 700 | 700 |
| L(mm): | 210 | 210 | 210 | 400 or 500 |
(*)Add"FA"mean steel rope, add"SS"mean stainless steel rope
For messengered Round ADSS
*Z=Zinc Alloy Wedge
Description
For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.
Material
Clamp body made of aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).
Features
A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.

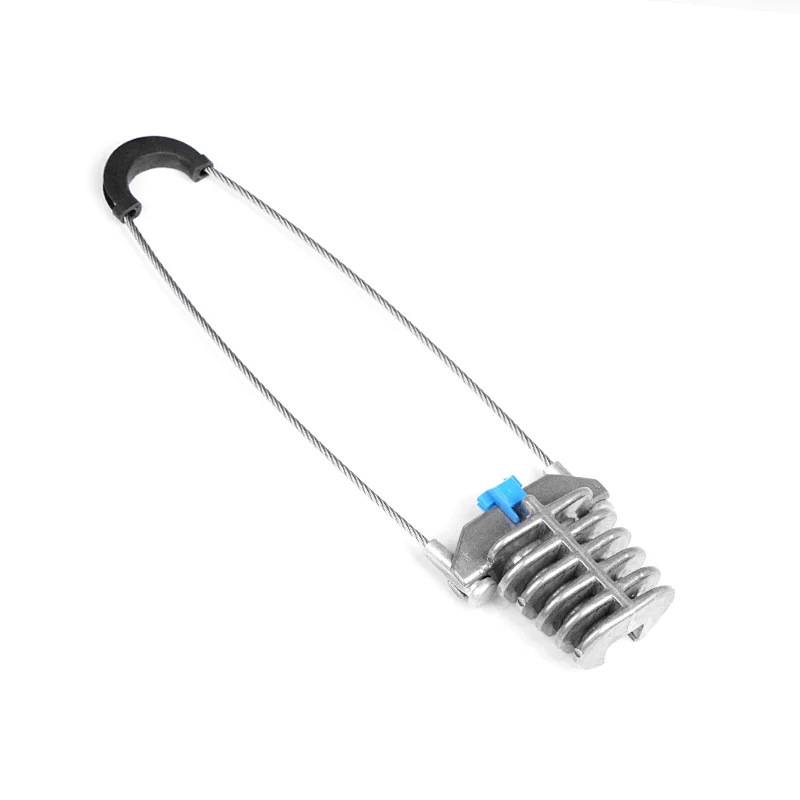

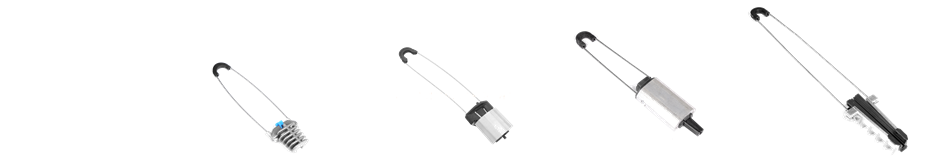

Many Kinds of Tension Clamps
Bracket & Accessories
