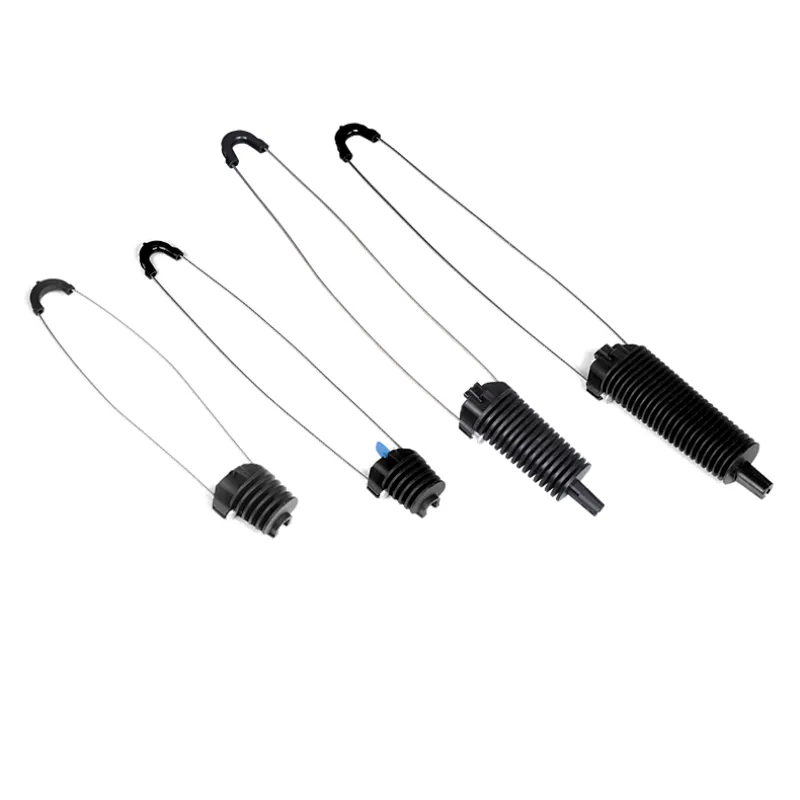

Anchor clamp for "8" ADSS, round ADSS

Model NO.
PA for ADSS
Delivery:
FOB
Minimum order quantity:
1000 pieces
Supply Ability:
300000 pieces / Month
Country of Origin:
Ningbo/Shanghai
Quantity:

Anchor clamp for"8"ADSS, round ADSS

ModelsPA-05-*ZPA-05-*PA-05-*PA-02-*PA-01-*
Cable Diameter(mm)3~73~73~76~88~10
Min Tension (daN)400400400500500
L(mm)360360360400400

(*)Add"FA"mean steel rope, add"SS"mean stainless steel rope
For messengered Fig-8 cable, AAAC or Steel Fibre glass reinforced resin; Round ADSS
*Z=Zinc Alloy Wedge

Description

For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.

Material

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.

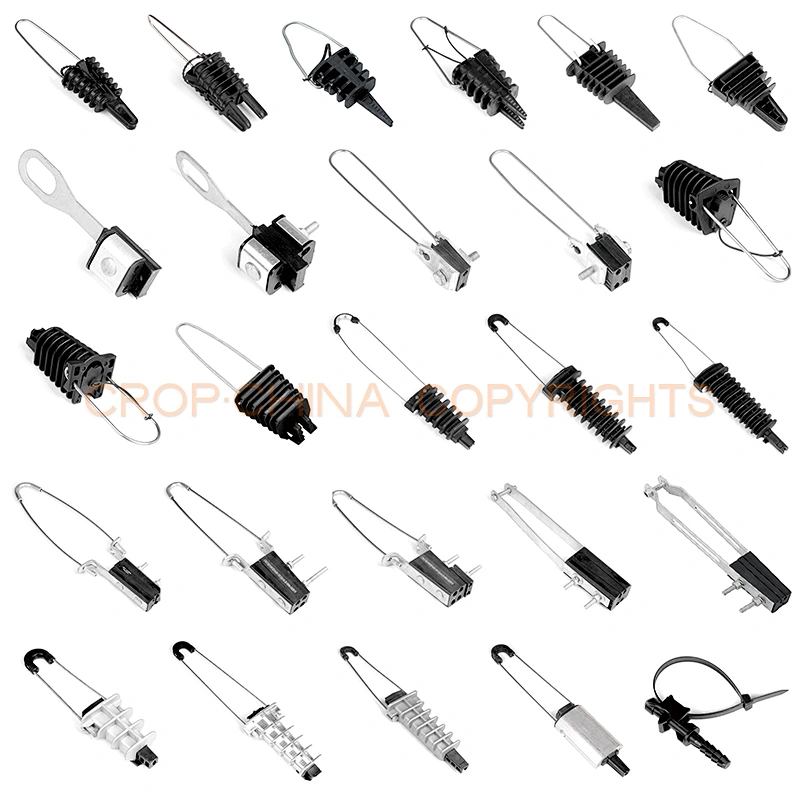

Many Kinds of Tension Clamps

Bracket & Accessories

  • Place of Origin:Zhejiang,China (Mainland)
  • Brand Name:CROP
  • Model Number:PA-05-*Z
