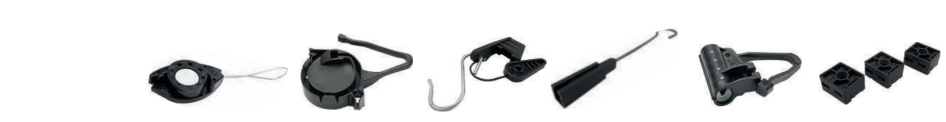

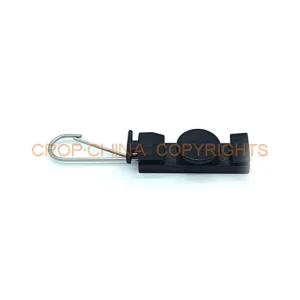

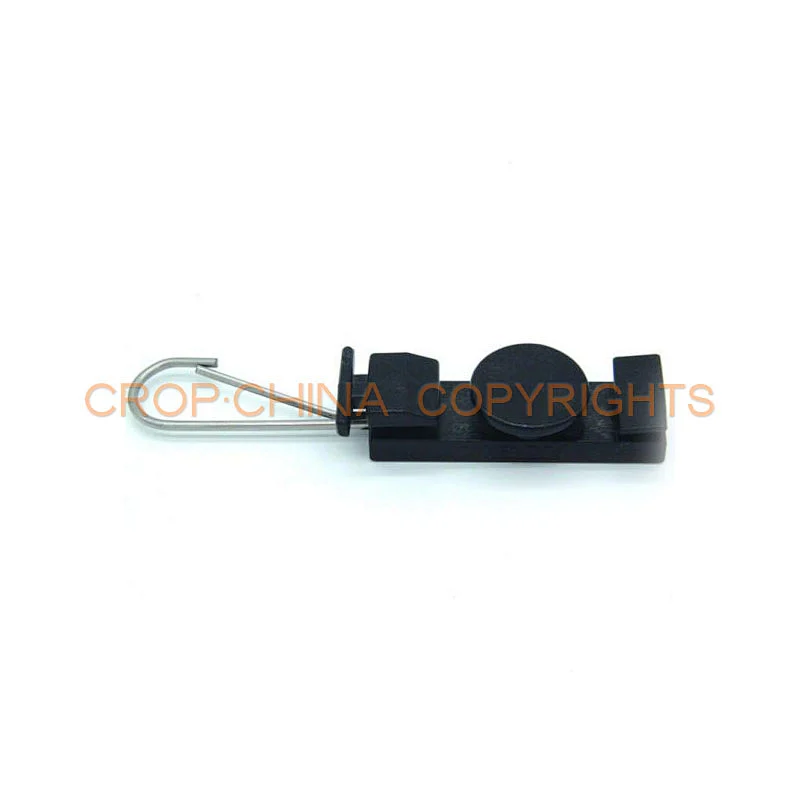

FTTX clamps for flat, figure-I type Cable with steel or FRP messengers

Models | FT-5B | FT-SO-C | FT-SO-A | FT-SS | FT-C01 |
Wire diameter (mm) |
0.4-1.5 |
0.4-1.5 |
0.4-1.5 |
0.4-1.5 | 2 - 5 |
MBL ,kN | 1 | 0.5 | 0.5 | 2 | 1 |
Material | UV resistant plastic, stainless steel | UV resistant plastic, stainless steel | UV resistant plastic, stainless steel | UV resistant plastic, stainless steel | Galvainzed steel, aluminum |
* plastic color can be ordered. | | | | | |
FTTX clamps for round and flat-tyoe cable

Models | FT-FISH-1 | FT-ACC | FT-D2 | FT-H15 | FT-D6 | FT-DC-35 |
Wire diameter (mm) |
 2 - 3
2 x 3 |
2 - 6 |
 2 - 5
2 x (3 -5) |
 2 - 4
2 x (5 -8) |
4 - 8 |
 2 - 5
2 x (3 -5) |
MBL ,kN | 0.5 | 1 | 0.5 | 0.5 | 0.5 | 0.1 |
Material | UV resistant plastic, stainless steel | UV resistant plastic | UV resistant plastic, galvanized steel | UV resistant plastic, galvanized steel | UV resistant plastic | UV resistant plastic |

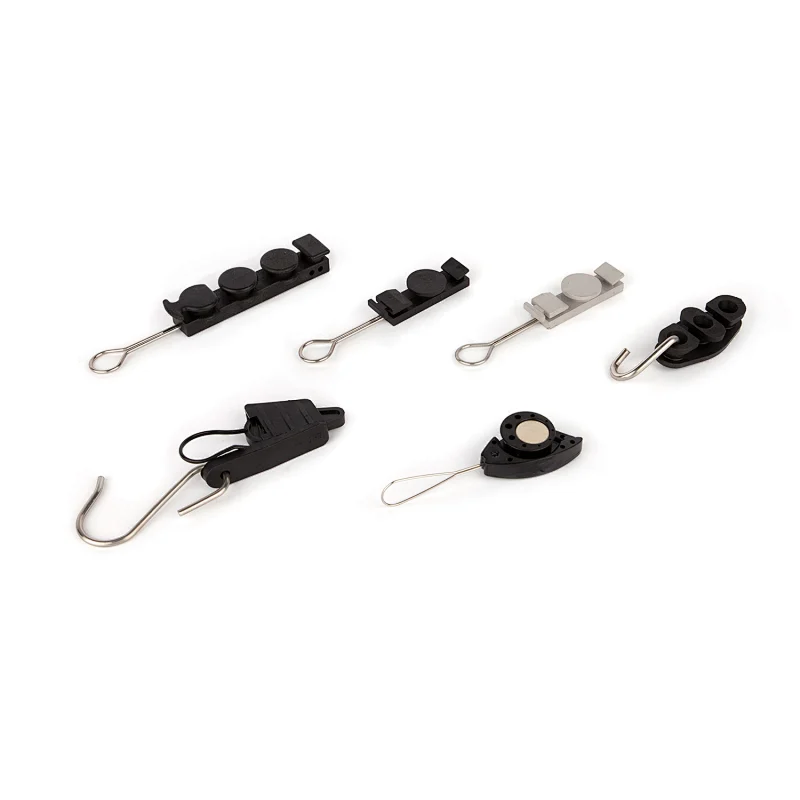

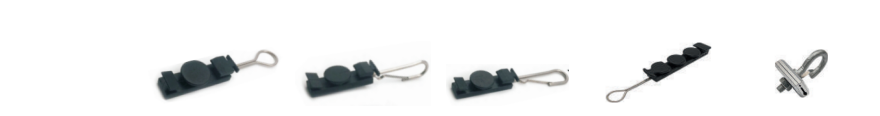

FTTX clamps for flat-type cables



FTTX or drop wire clamps and brakets were developed to anchor or suspense the telephone drop wire, FTTX FTTH fat or round cables on dead-end or intermediate routes during last mile line network installation. Also called FTTH-clamps, applied in FTTx network construction.
Material:
Hot dip galvanized or Electro-zinc plating Hook and bolts
plastic
