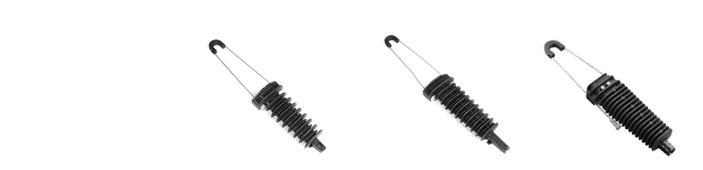

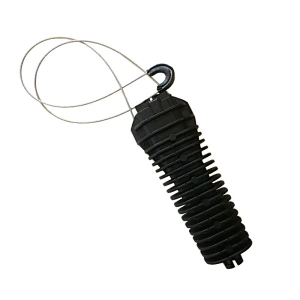

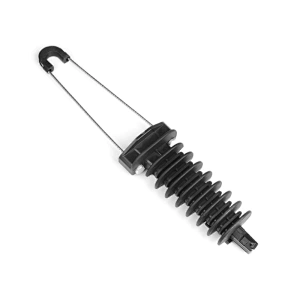

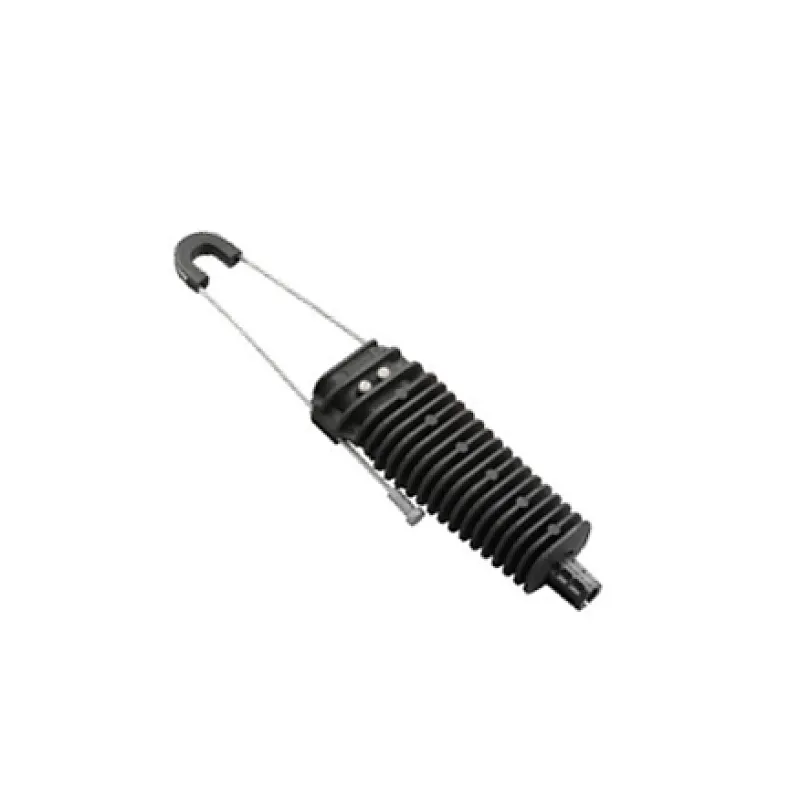

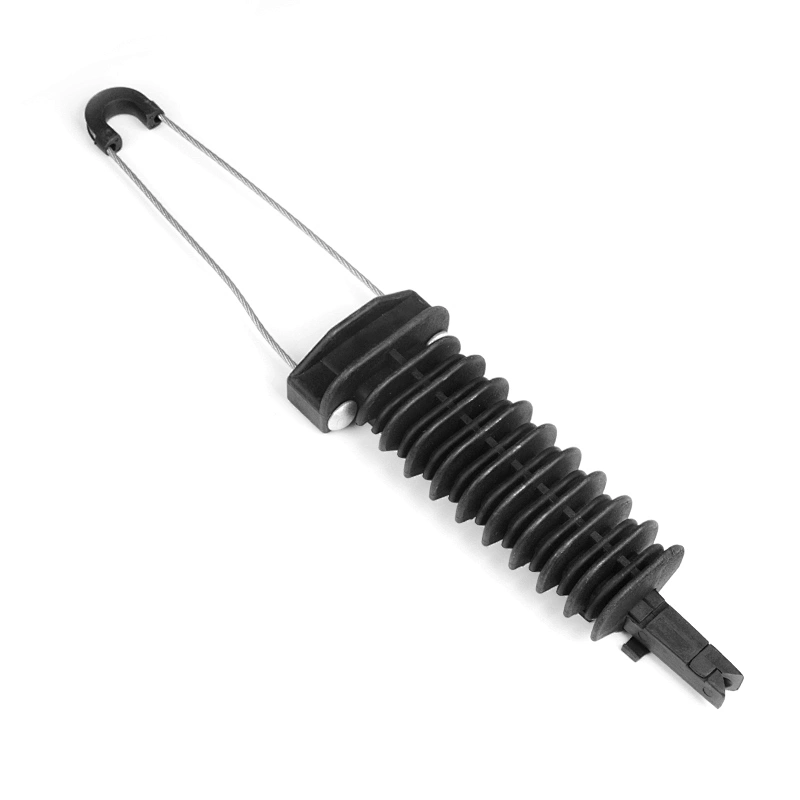

Anchor clamp for round ADSS Optical Cable

Anchor clamp for round ADSS Optical Cable

Model NO.: PA for big ADSS
Delivery:: FOB
Minimum order quantity:: 1000 pieces
Supply Ability:: 300000 pieces / Month
Country of Origin:: Ningbo/Shanghai
Stock Time:: 10-15 Days

Quantity:

Anchor clamp for round ADSS Optical Cable

Models	PA-1500-*(ADSS)	PA-2000-*(ADSS)	AD-1012-*.500
Cable diameter(mm)	8 ~ 12	12 ~ 15	10 ~ 12
Min Tension (daN):	600	600	800
L(mm):	300 or 500	300 or 500	500
Remarks	* add "FA" mean steel rope, add "SS" mean stainless steel rope

(*)Add"FA"mean steel rope, add"SS"mean stainless steel rope
For messengered Round ADSS
*Z=Zinc Alloy Wedge

Description

For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.

Material

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.
