Model NO.:
PA for service line
Delivery:
FOB
Minimum order quantity:
1000 pieces
Supply Ability:
300000 pieces / Month
Country of Origin:
Ningbo/Shanghai

SERVICE LINE ANCHOR CLAMP

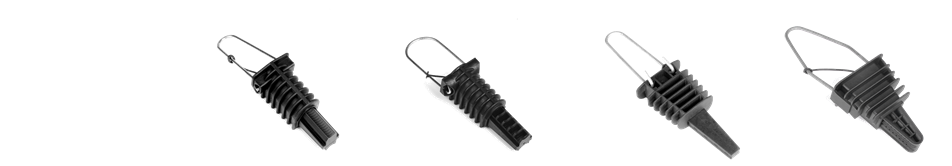

ModelsAN-PA25-*AC-PAG25-*PA-225-*PA-425-*
Cable range (mm2)2X16-352x16-352X16-254X16-25
Cable diameter(mm)4~224~224 ~ 84 ~ 8
Core No.2 or 42 or 424
MBL (daN)250 (300)250 (300)200200
RemarksDCR

(*)Add"FA"mean steel rope, add"SS"mean stainless steel rope

Description

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.
One core Anchor clamps are design to supporting the neutural messenger, the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Standard: NFC 33-041.

Material
Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.

Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

Tool free installation with wedges sliding inside the body.
Easy to open bail permits fixing to brackets and pigtails Adjustable length of bail in three steps.

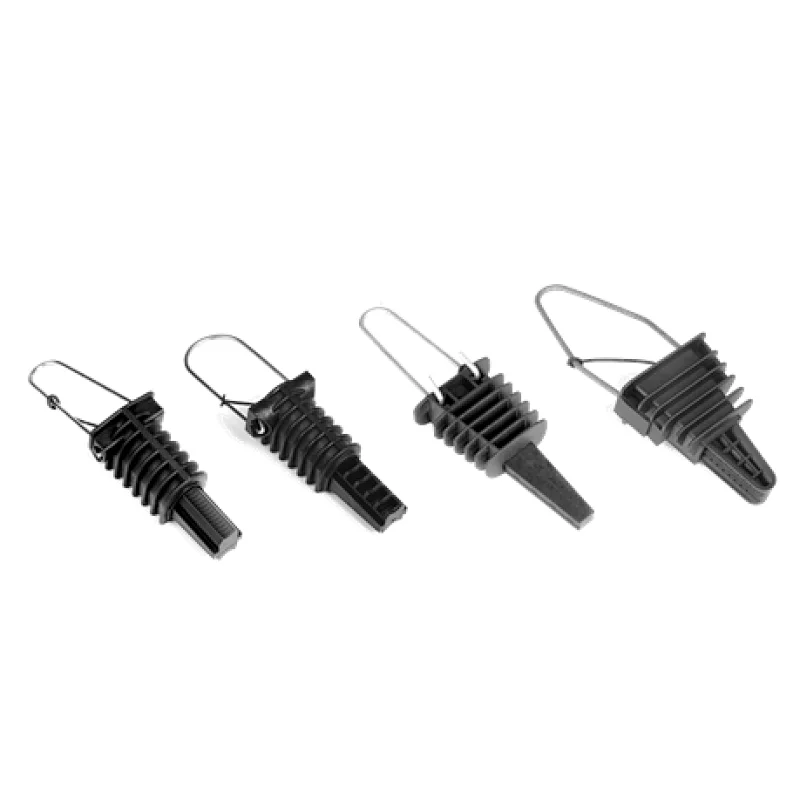

Many Kinds of Tension Clamps

Bracket & Accessories

  • Place of Origin:Zhejiang,China (Mainland)
  • Brand Name:CROP
  • Model Number:PA for service line
