Insulated Piercing connector, PC-1
- Model NO.:
- JNC-1
- Delivery:
- FOB

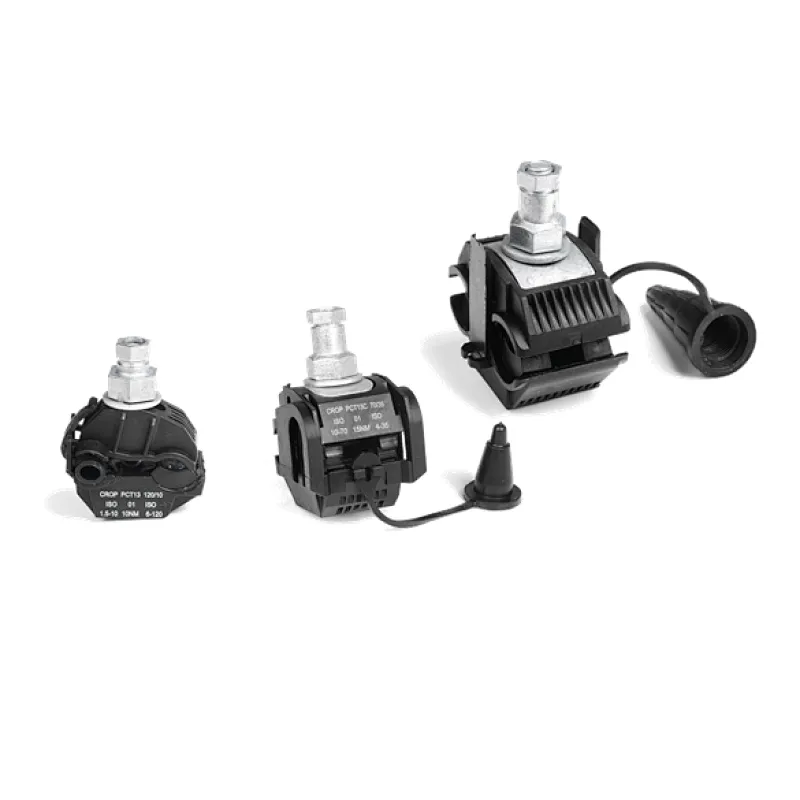

Insulation piercing connector JNC series
Connection and protection components for LV
Description
The PCT13C (JNC) insulation piercing connectors / clamp for low voltage cable are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed (fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Material
- Body: Thermoplastic polyamide 66 with fiberglass
- Connecting bridge: Copper tinned , Brass tinned, Al
- Sealing parts: Flexible PVC
- End cap: Flexible PVC
- Grease: Silica gel
- Bolt: Hot dip glavanized steel, 8.8 grade
- Washer, Nut: Hot dip glavanized steel
- Fuse nut: Zinc alloy
Features
- • Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
- • Potential free tightening bolts allow safe installations on life lines
- • Bimetallic,suitable for aluminium and copper conductors
- • Long neck 13 mm shear head nut ensuring reliable installations
- • Components not losable, end cap attached to body
- • Insulation material made of weather and UV resistant glass fibre reinforced polymer

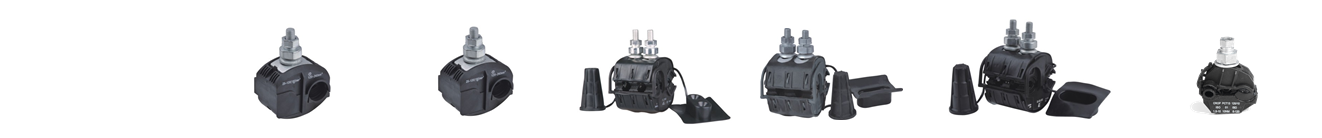

| Equal to Code | JNC-1 | JNC-2 | JNC-2-150 | JNC-3 | JNC-3-120 | JNC-4 |
| Models | PCT13C 95/10 | PCT13C 95/50 | PCT13C 150/50 | PCT13C 95/95 | PCT13C 120/120 | PCT13C 150/150 |
| Main Line(mm2) | 6-95 | 16-95 | 50-150 | 16-95 | 16-120 | 35-150 |
| Service Line (mm2) | 1.5-10 | 4-50 | 4-50 | 16-95 | 16-120 | 35-150 |
| Bolt No. | 1 | 1 | 1 | 1 | 1 | 1 |
| Torque (Nm) | 10NM | 17NM | 17NM | 17-23NM | 23NM | 23NM |
| Remarks | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO |
| Equal to Code | CRS6 | CRS7 | CRS240 | CRS300 | CRS400 | CRS101 |
| Models | PCT13C 240/120 | PCT13C 240/25 | PCT23C 240/240 | PCT23C 300 | PCT23C 400 | PCT13C 25/10 |
| Main Line(mm2) | 120-240 | 150-240 | 95-240 | 300 | 400 | 1.5-25 |
| Service Line (mm2) | 25-120 | 10-25 | 95-240 | 25-95 or 95-240 | 25-95 or 95-240 | 1.5-10 |
| Bolt No. | 1 | 1 | 2 | 2 | 2 | 1 |
| Torque (Nm) | 23NM | 23NM | 23NM | 30NM | 23NM | 9NM |
| Remarks | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO |
