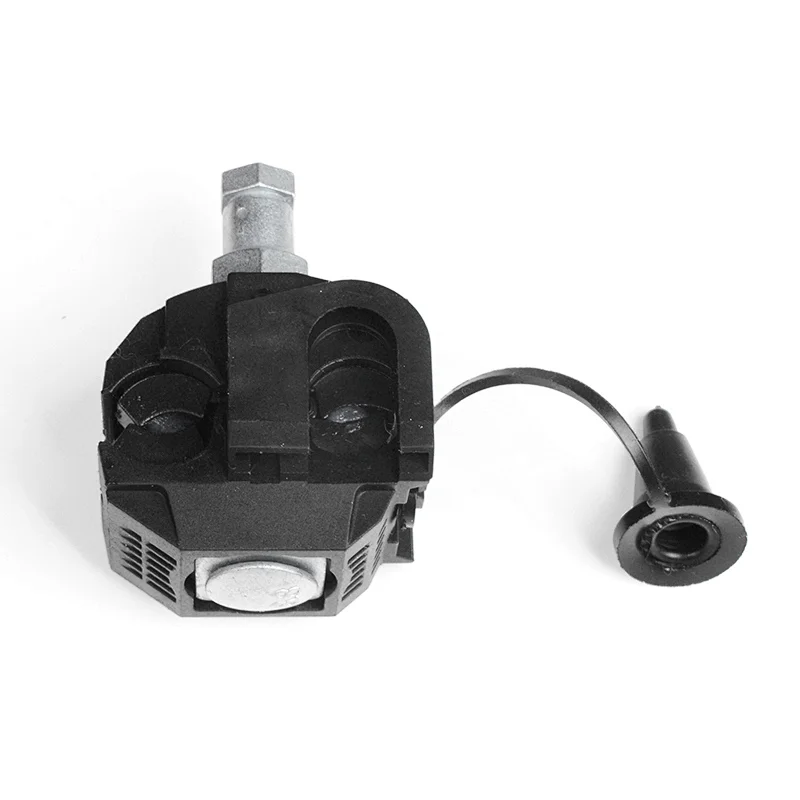

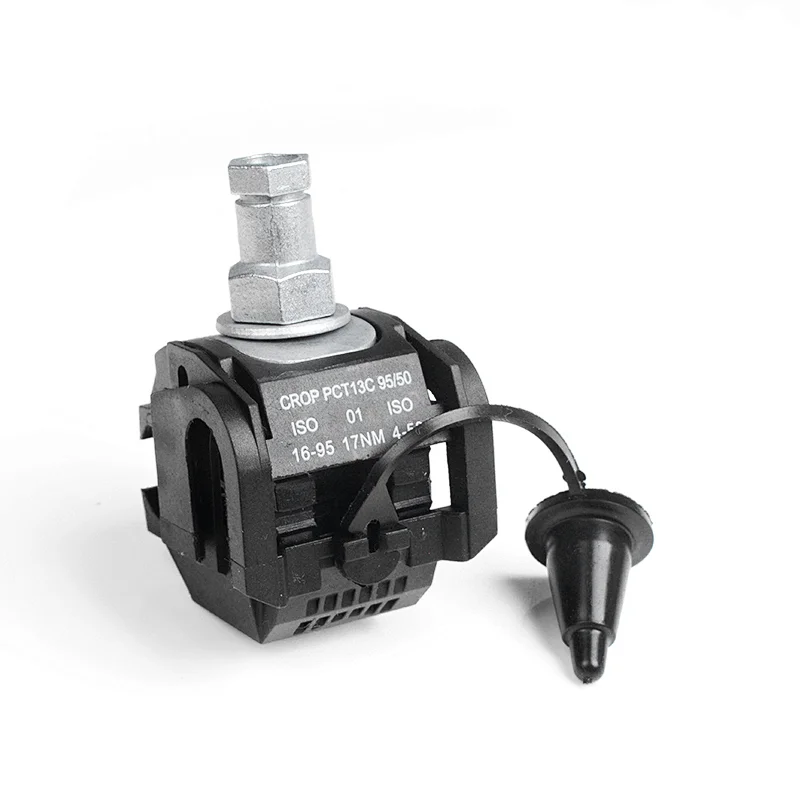

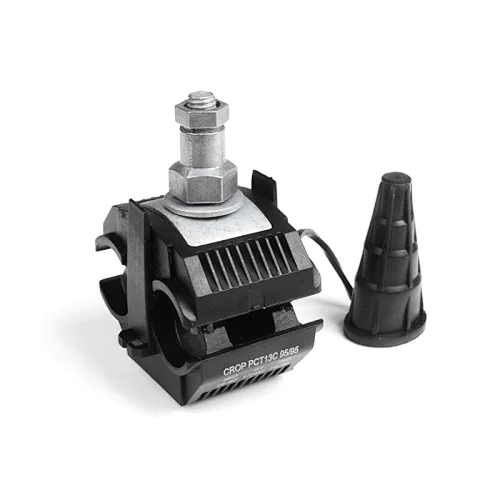

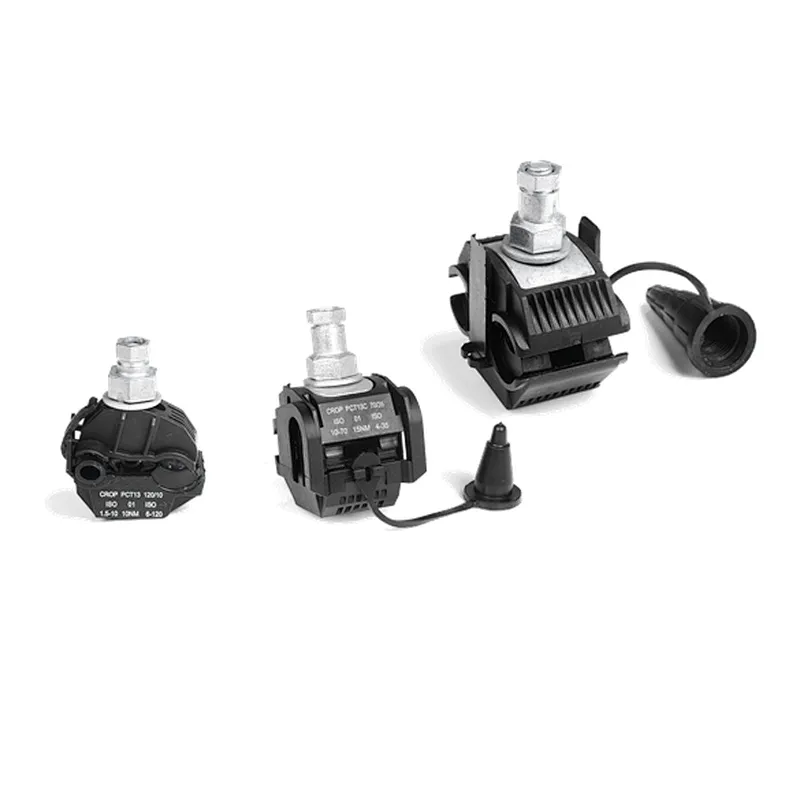

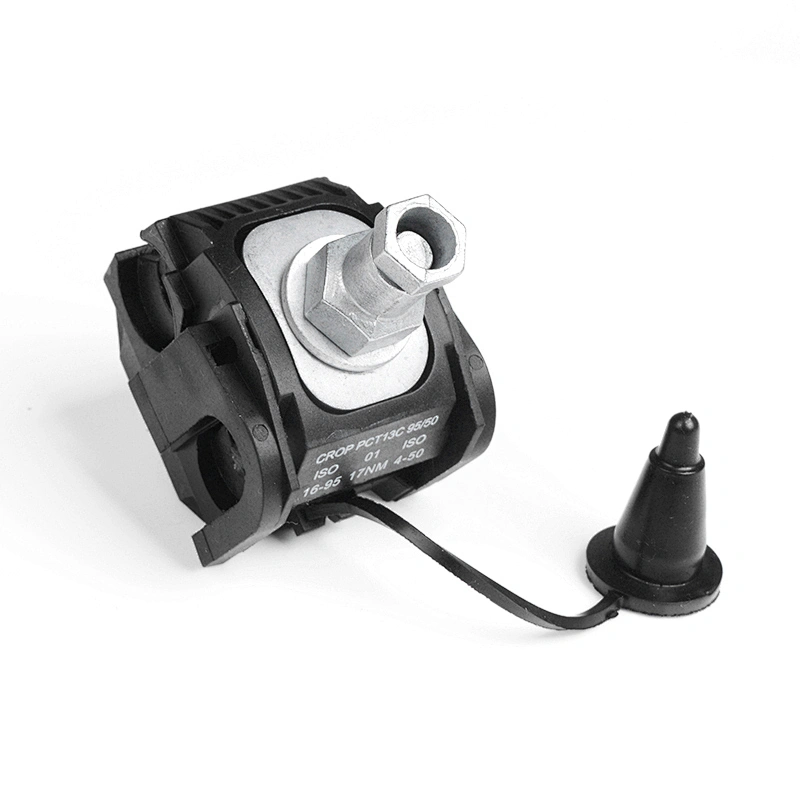

Insulation piercing connector PCT13C (JNC) series

Connection and protection components for LV

Description
The PCT13C (JNC) insulation piercing connectors / clamp for low voltage cable are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed (fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Material

  • Body: Thermoplastic polyamide 66 with fiberglass
  • Connecting bridge: Copper tinned , Brass tinned, Al
  • Sealing parts: Flexible PVC
  • End cap: Flexible PVC
  • Grease: Silica gel
  • Bolt: Hot dip glavanized steel, 8.8 grade
  • Washer, Nut: Hot dip glavanized steel
  • Fuse nut: Zinc alloy

Features

  • • Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
  • • Potential free tightening bolts allow safe installations on life lines
  • • Bimetallic,suitable for aluminium and copper conductors
  • • Long neck 13 mm shear head nut ensuring reliable installations
  • • Components not losable, end cap attached to body
  • • Insulation material made of weather and UV resistant glass fibre reinforced polymer

Equal to CodeJNC-1 JNC-2 JNC-2-150JNC-3JNC-3-120JNC-4
CRSEPCRS2-95CRS2-150CRS3-95CRS3-120CRS4-150
ModelsPCT13C 95/10PCT13C 95/50PCT13C 150/50PCT13C 95/95PCT13C 120/120PCT13C 150/150
Main Line(mm2) 6-9516-9550-15016-9516-12035-150
Service Line (mm2)1.5-104-504-5016-9516-12035-150
Bolt No.111111
Torque (Nm)10NM17NM17NM17-23NM23NM23NM
RemarksISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISO

Equal to CodeCRS6CRS7CRS240CRS300CRS400CRS101
ModelsPCT13C 240/120PCT13C 240/25PCT23C 240/240PCT23C 300PCT23C 400PCT13C 25/10
Main Line(mm2)120-240150-24095-2403004001.5-25
Service Line (mm2)25-12010-2595-24025-95 or 95-24025-95 or 95-2401.5-10
Bolt No.112221
Torque (Nm)23NM23NM23NM30NM23NM9NM
RemarksISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISO
