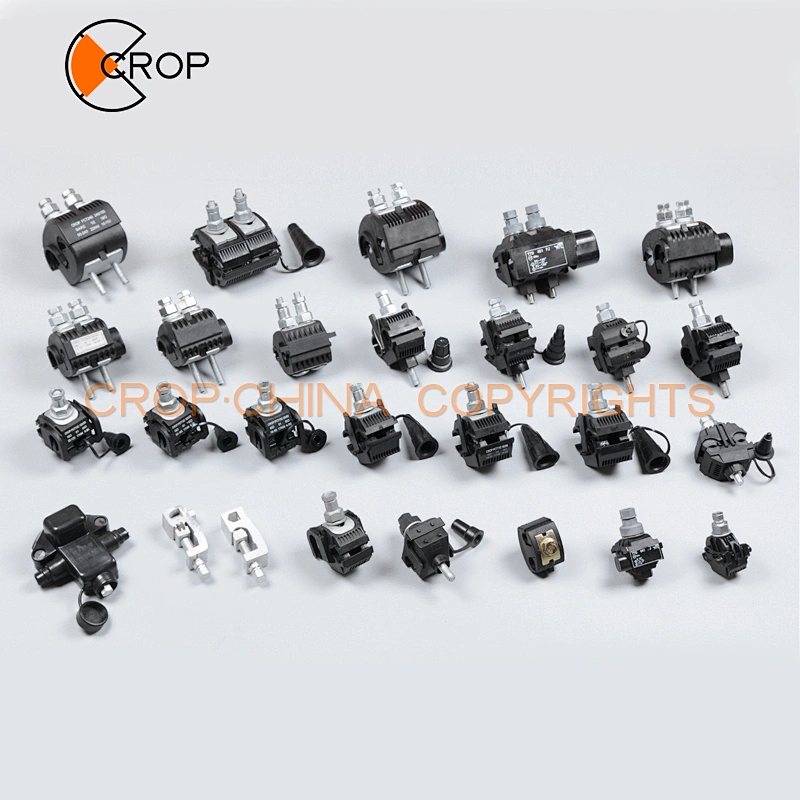

Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401
Insulation piercing connector CRT401

Insulation piercing connector CRT401

Model NO.:
CRT-401
Delivery:
FOB
Minimum order quantity:
500 pieces
Supply Ability:
300000 pieces / Month
Country of Origin:
Ningbo ,Shanghai
Quantity:

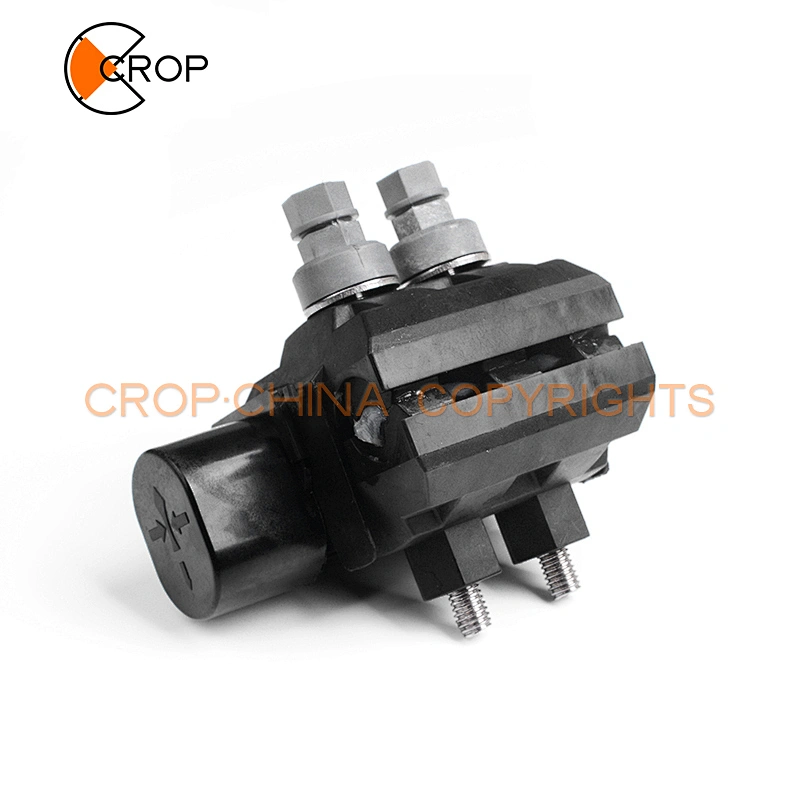

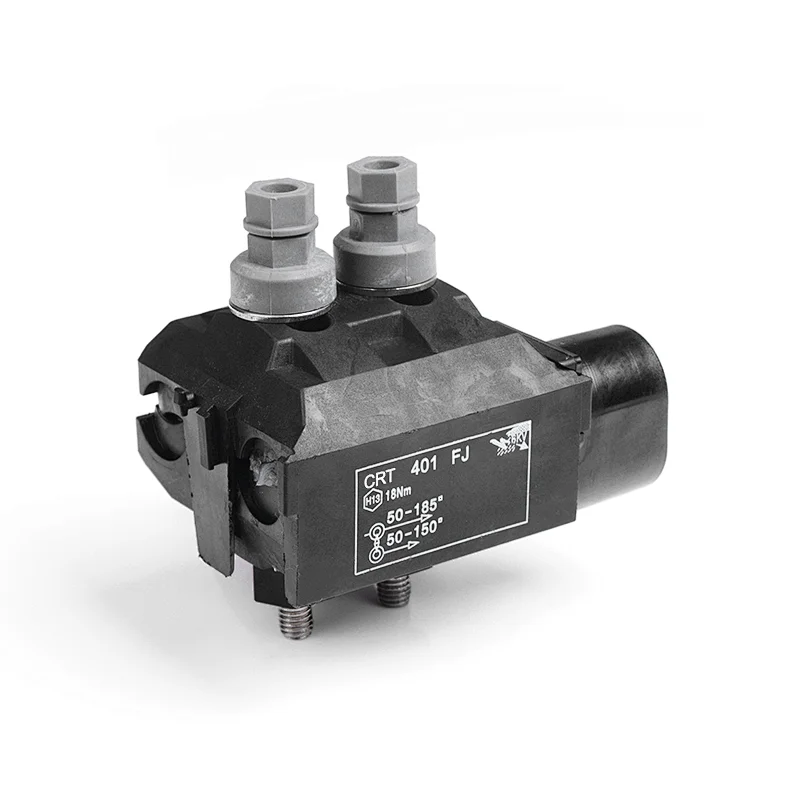

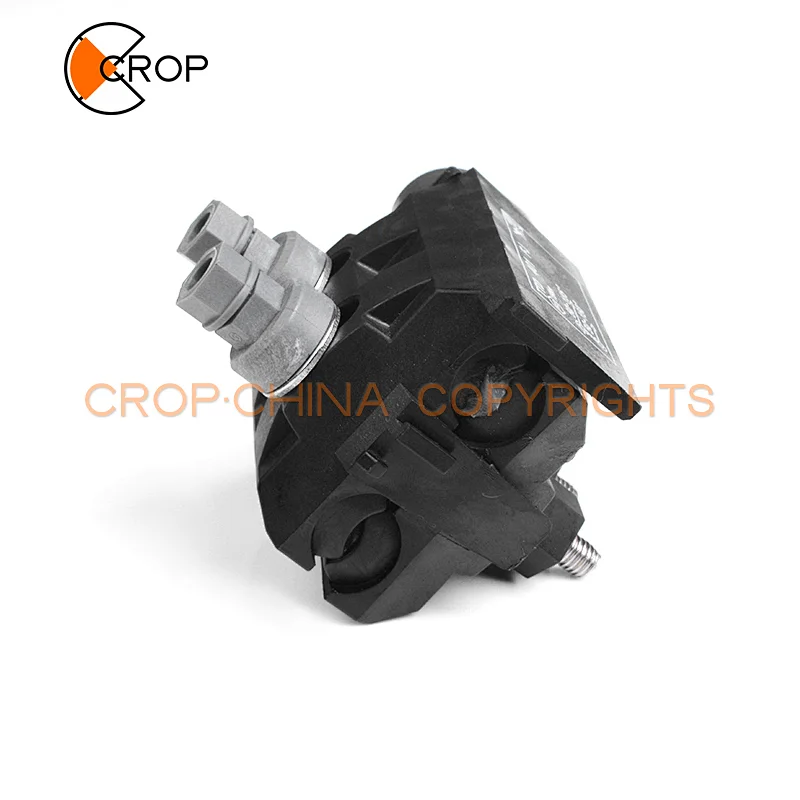

Insulation piercing connector CRT401

Two-bolts

Connection and protection components for LV

Description
The 2 bolts CRT401 insulation piercing connectors / clamp for low voltage cable are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed (fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned , Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip glavanized steel, 8.8 grade
Washer, Nut: Hot dip glavanized steel
Fuse nut: Zinc alloy

Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic,suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer

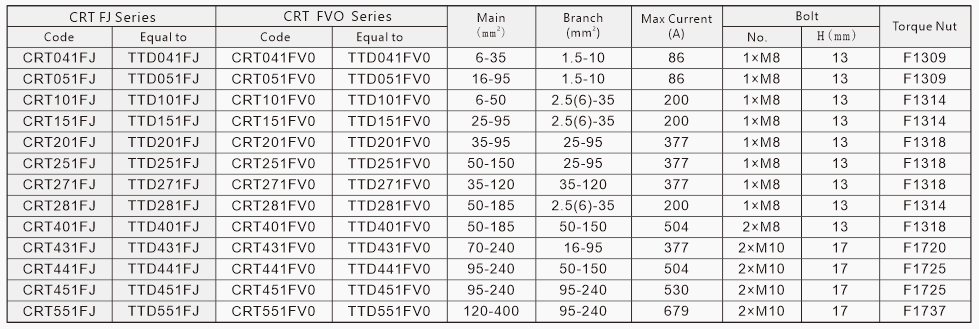

ModelsCRT041
Main Line(mm2)50-185
Service Line (mm2)50-150
Bolt No.2
Torque (Nm)13NM
RemarksISO to ISO


  • Place of Origin:Zhejiang,China (Mainland)
  • Brand Name:CROP
  • Model Number:CRT401
  • Type:Other
  • Application:Power
  • Gender:Other
