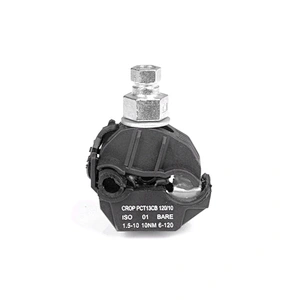

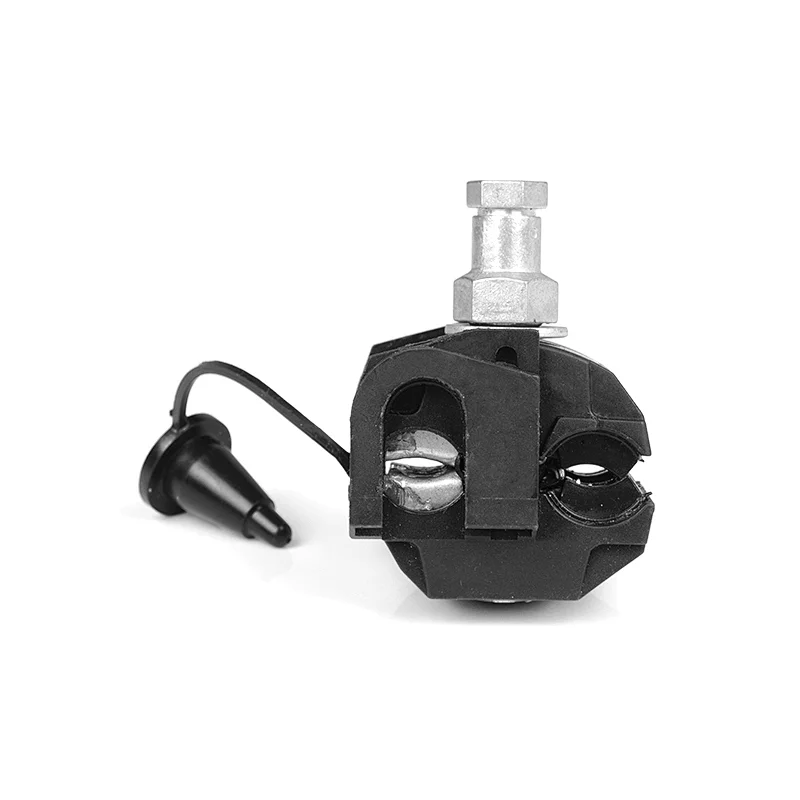

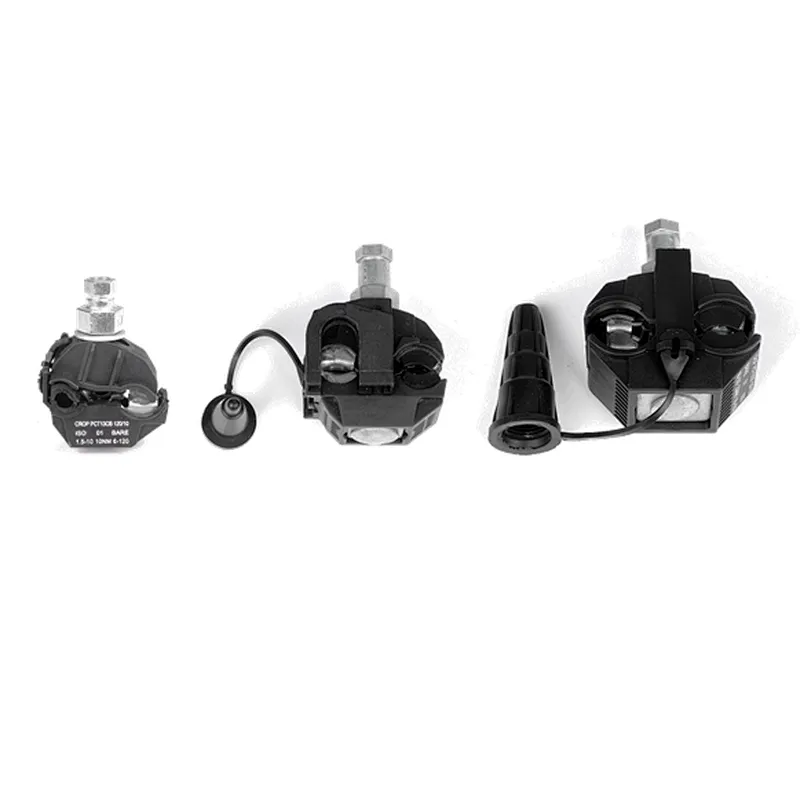

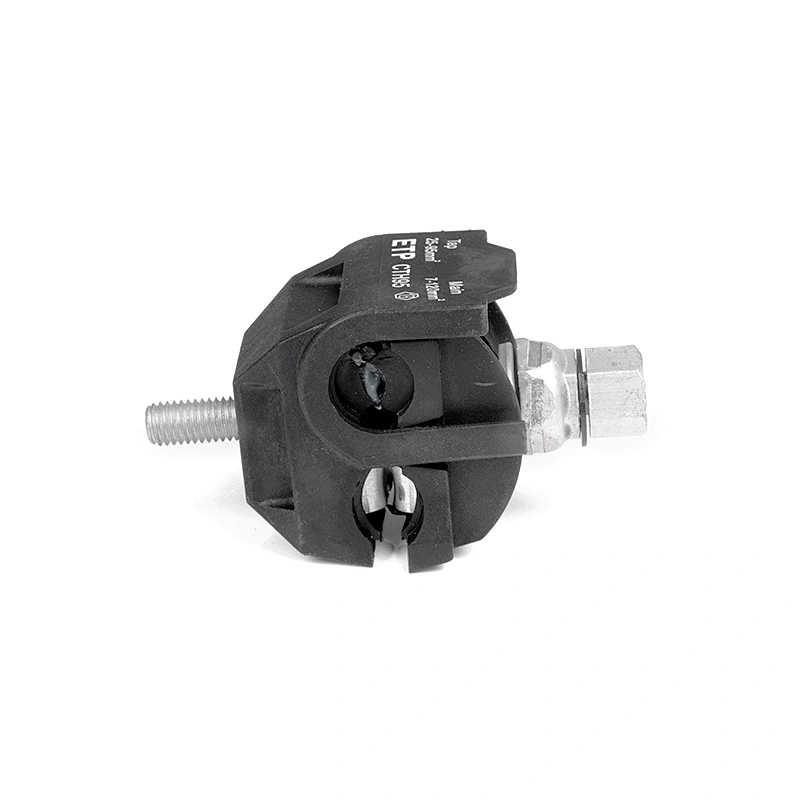

Insulation Piercing Connector for bare line

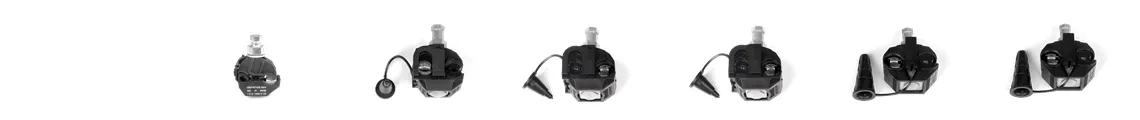

ModelsPCT13CB 120/10PCT13CB 95/50PCT13CB 95/50PCT13CB 150/50PCT13CB 95/95PCT13CB 150/150
Main Line(mm2)(B)  6-12016-95(B)16-95(B) 50-150(B)16-95(B) 16-150
Service Line (mm2)1.5-10(B)4-504-504-3516-9516-150
PRINCIPAL  AWG(desnudo) #10 - 4/0#5 - 4/0(desnudo) #5 - 4/0(desnudo) 1/0- 300(desnudo)  #5 - 4/0(desnudo)  #5 - 300
DERIVADO  AWG #16 - #7(desnudo)#12 - #2 (#1)#12 - #2 (#1)#12 - #2#5 - 4/0#5 - 300
Bolt No.111111
Torque (Nm)10NM17NM17NM23NM23NM23NM
RemarksISO to BareISO to BareISO to BareISO to BareISO to BareISO to Bare

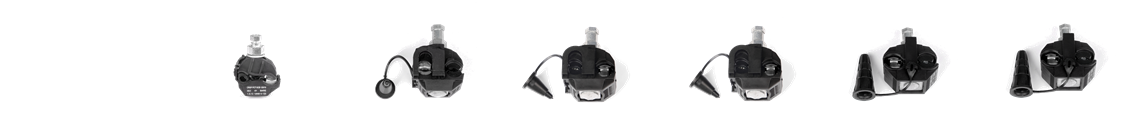

ModelsPCT13CB 120/10PCT13CB 95/50PCT13CB 95/50PCT13CB 150/50PCT13CB 95/95PCT13CB 150/150
Main Line(mm2)(B)  6-12016-95(B)16-95(B) 50-150(B)16-95(B) 16-150
Service Line (mm2)1.5-10(B)4-504-504-3516-9516-150
PRINCIPAL  AWG(desnudo) #10 - 4/0#5 - 4/0(desnudo) #5 - 4/0(desnudo) 1/0- 300(desnudo)  #5 - 4/0(desnudo)  #5 - 300
DERIVADO  AWG #16 - #7(desnudo)#12 - #2 (#1)#12 - #2 (#1)#12 - #2#5 - 4/0#5 - 300
Bolt No.111111
Torque (Nm)10NM17NM17NM23NM23NM23NM
RemarksISO to BareISO to BareISO to BareISO to BareISO to BareISO to Bare

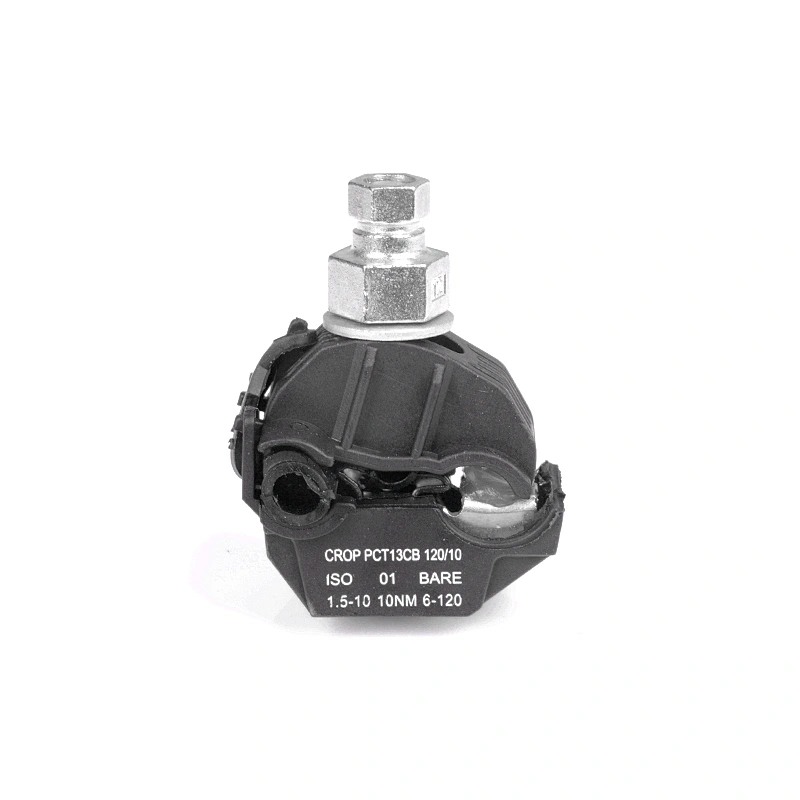

Description

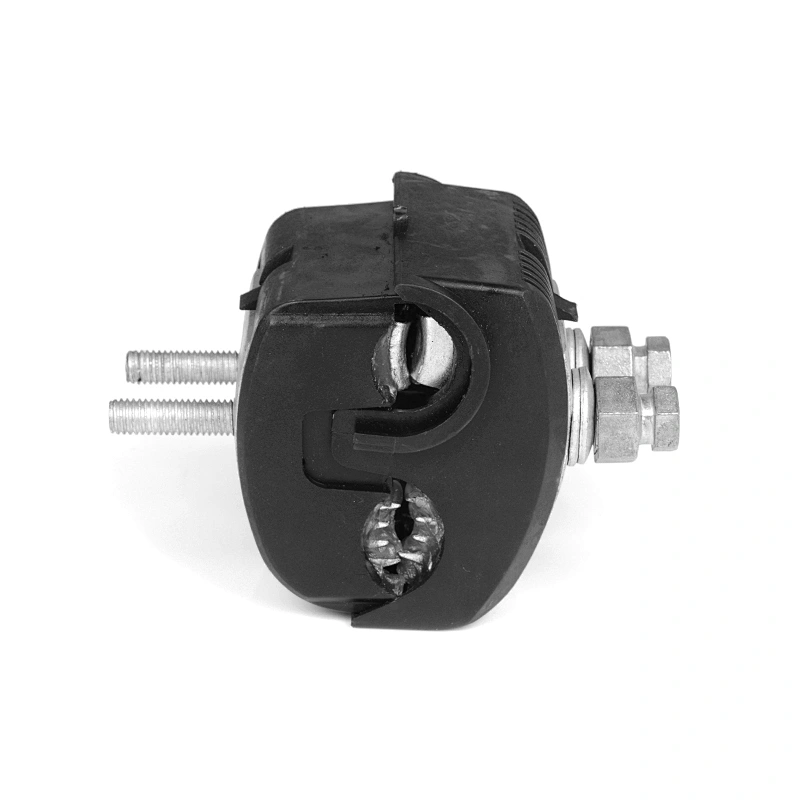

TheInsulation Piercing Connector for bare line  are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed (fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

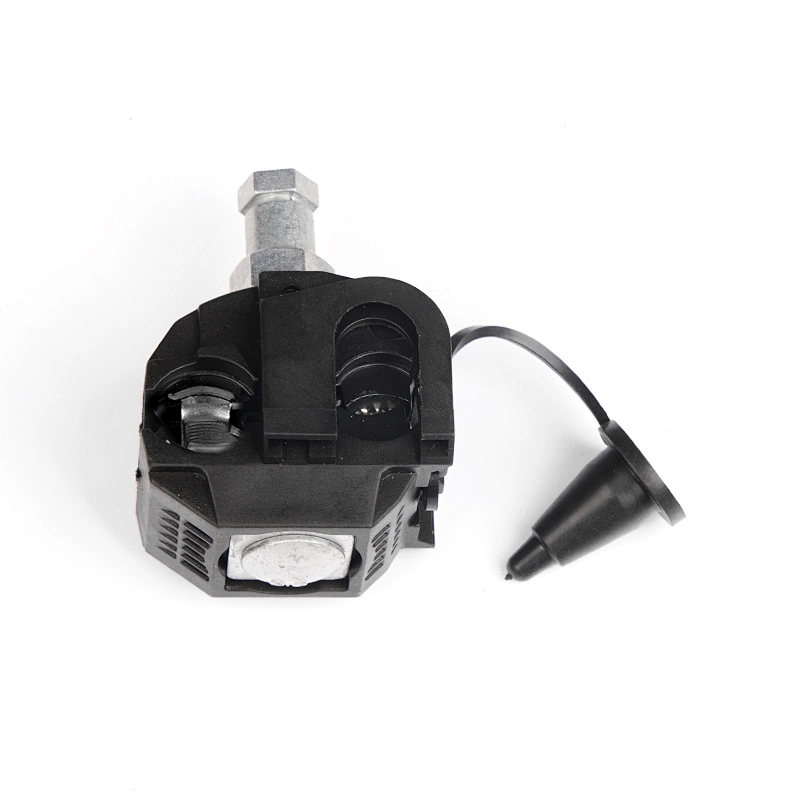

Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned , Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip glavanized steel, 8.8 grade
Washer, Nut: Hot dip glavanized steel
Fuse nut: Zinc alloy

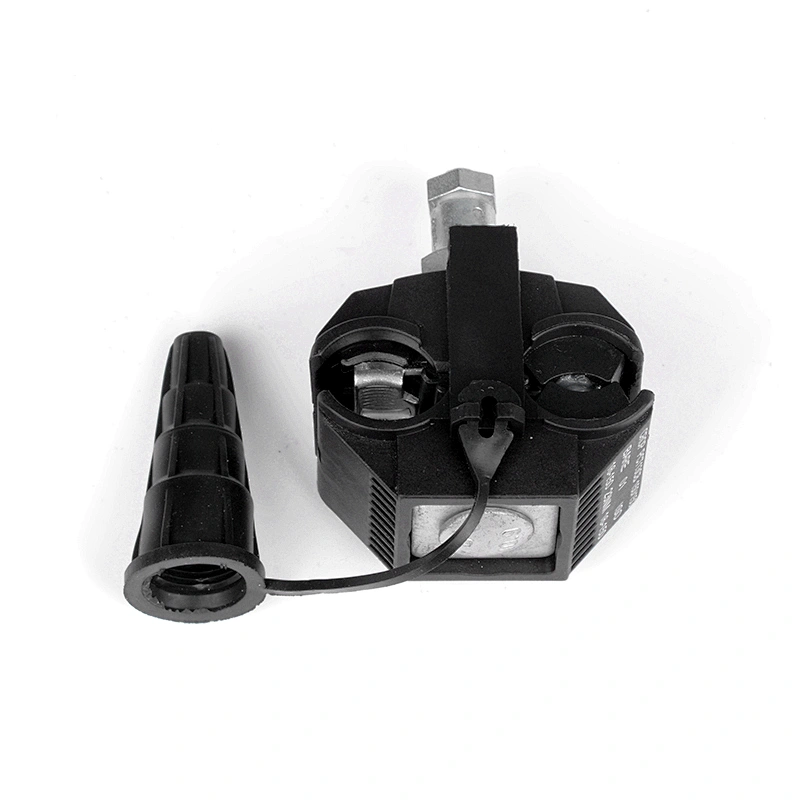

Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic,suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer





  • Place of Origin:Zhejiang,China (Mainland)
  • Brand Name:CROP
  • Model Number:CRT041
