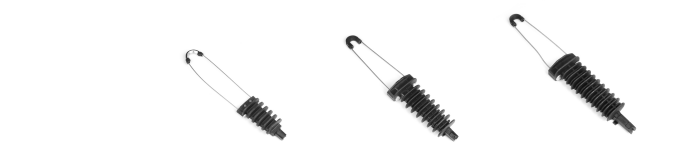

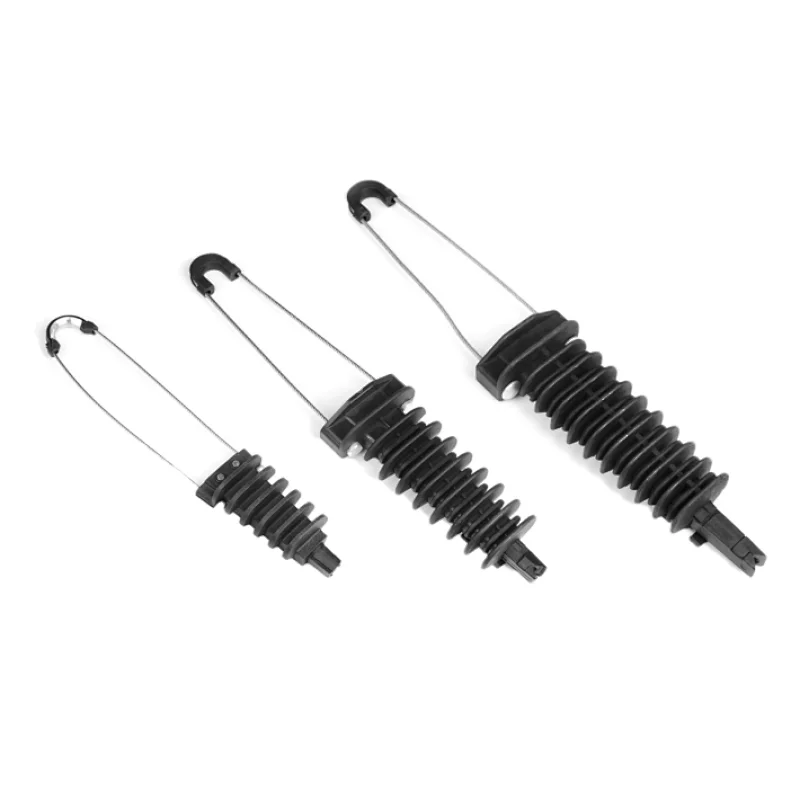

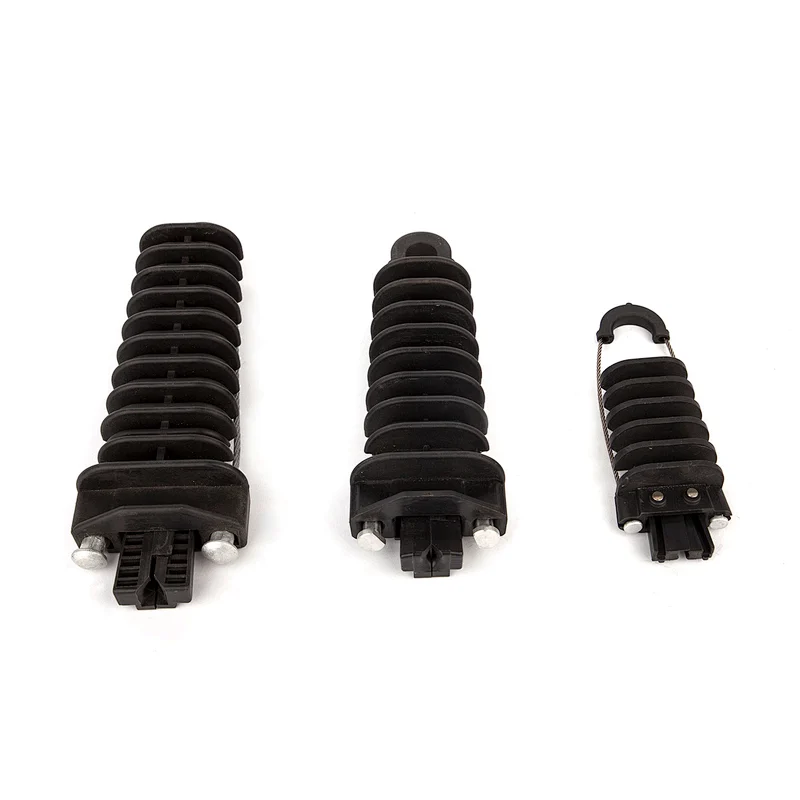

Dead-end Anchoring clamp for aerial bundled cable

Models | AC-PA25-* | AC-PA1500-* | AC-PA2000-* |
Cable range (mm2) | 16-25 | 50-70 | 95-120 |
Core No. | 1 | 1 | 1 |
MBL (daN) | 600 (800) | 1000(1500) | 1500(2000) |
Remarks | | | |
* add"FA"mean steel rope, add"SS"mean stainless steel rope |
Description:

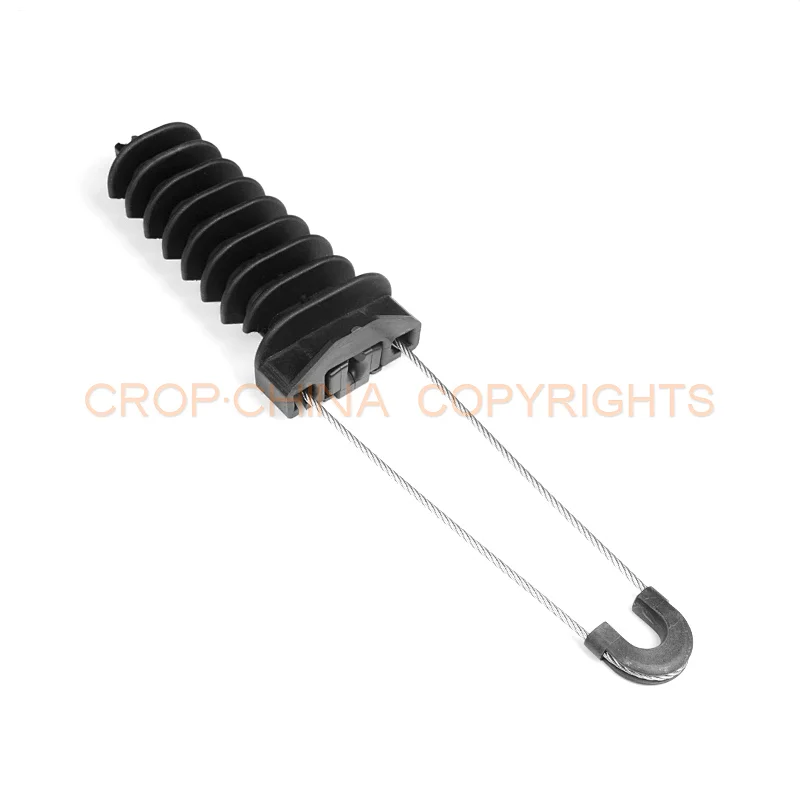

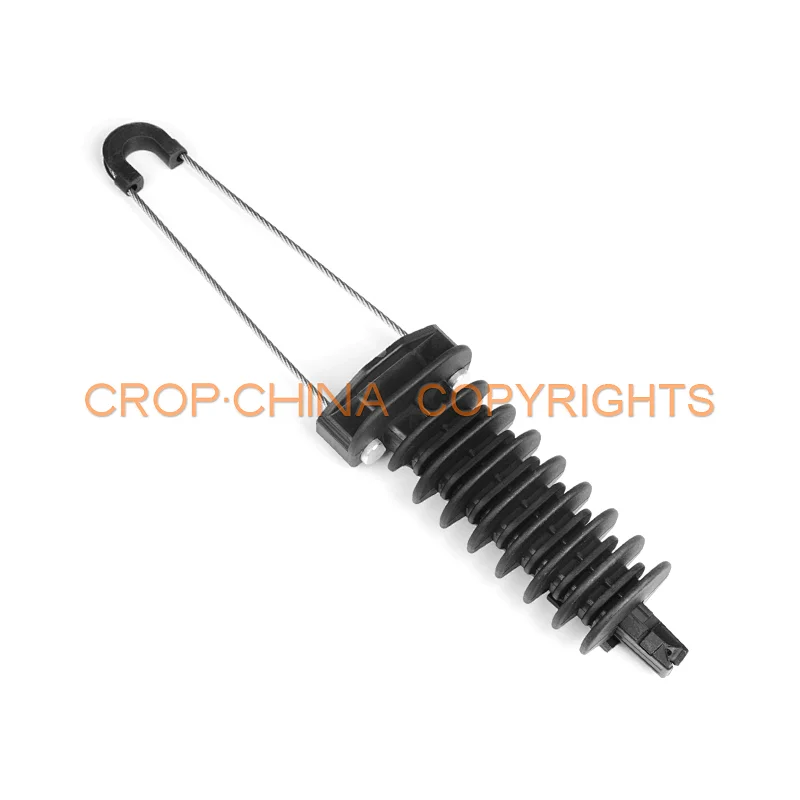

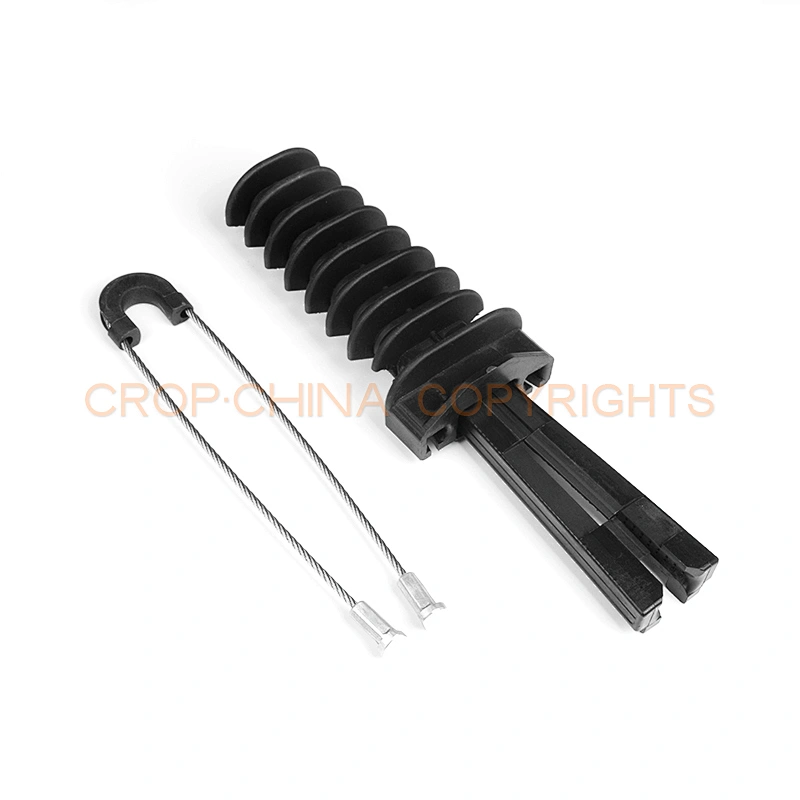

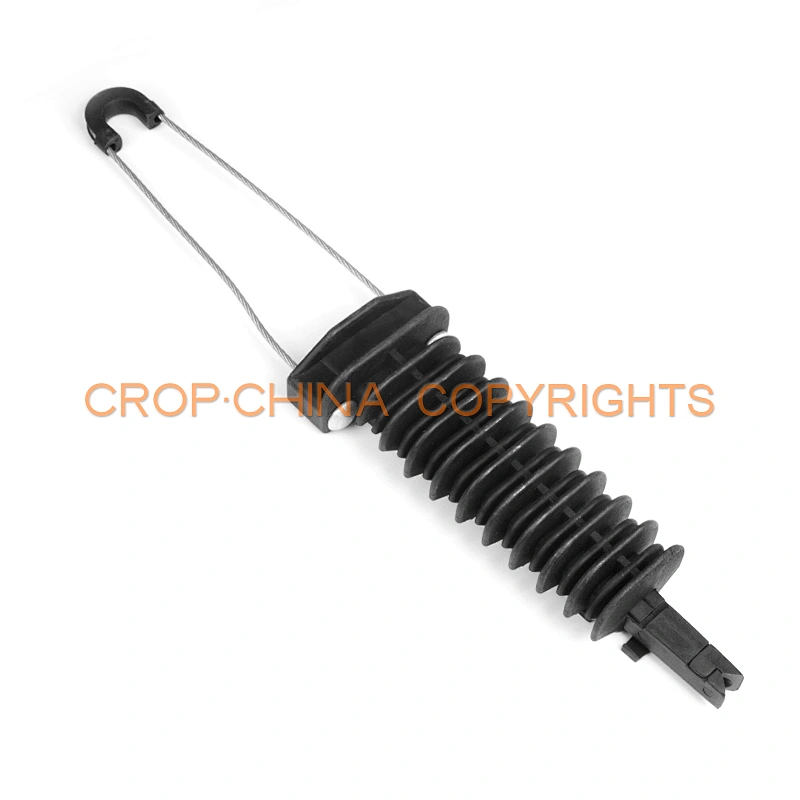

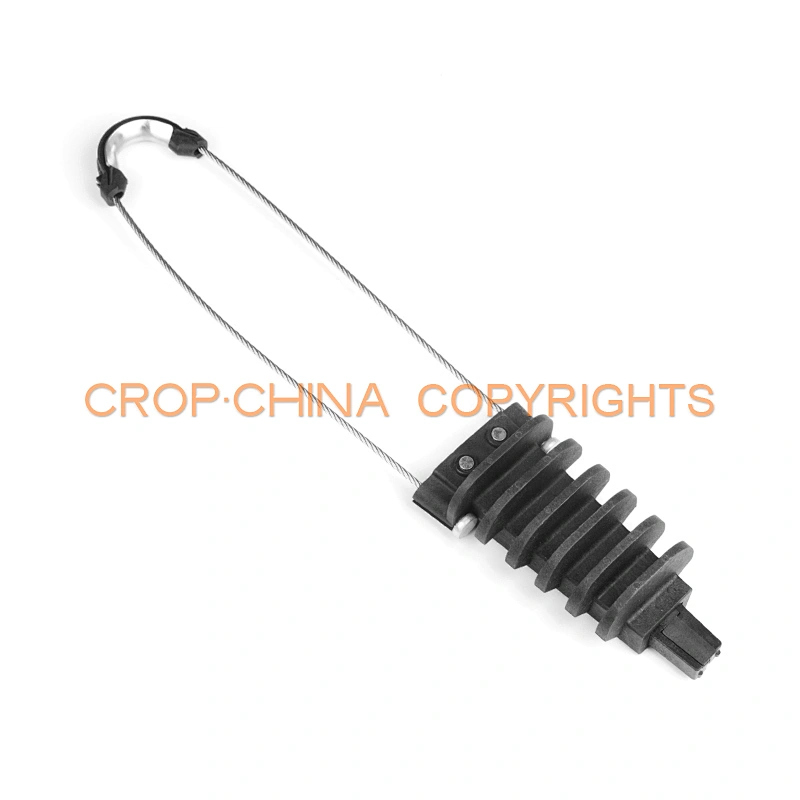

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.
One core Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting.Pilot wires or street lighting conductor are led alongside the clamp.The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Standard: NFC 33-042.
Material:
Clamp made of weather and UV resistant polymer
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS)
Features:
Tool free installation with wedges sliding inside the body
Easy to open bail permits fixing to brackets and pigtails
Adjustable length of bail in three steps
