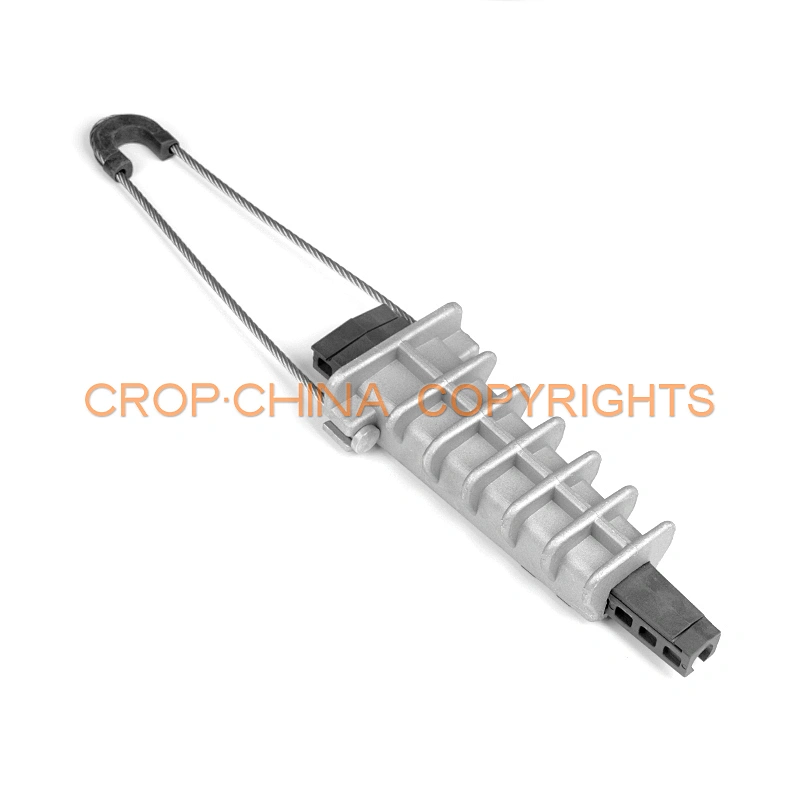

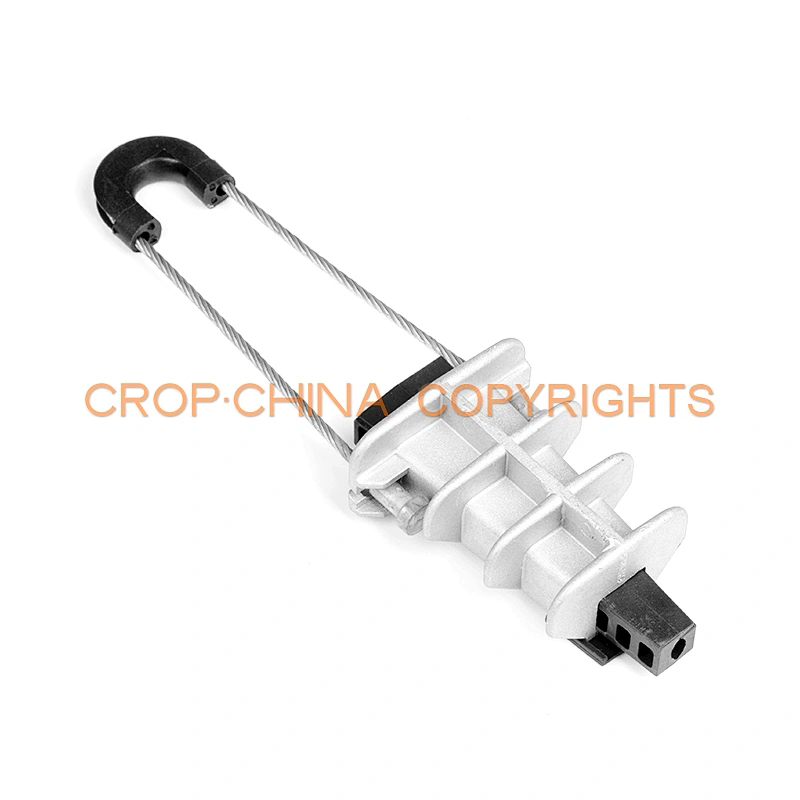

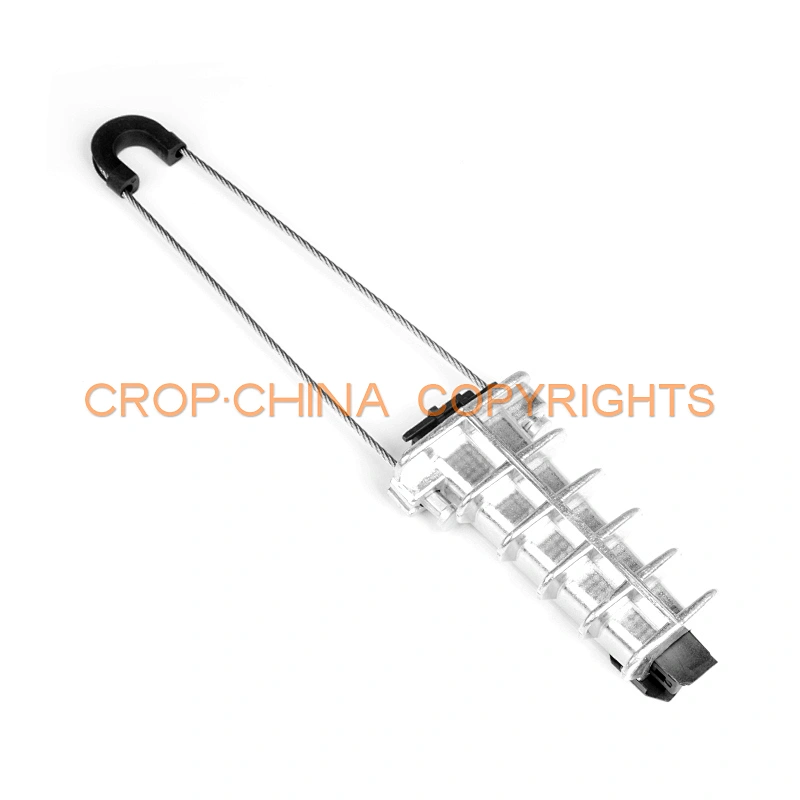

Aluminum alloy Anchor Clamp

Model NO.:: PAL
Delivery:: FOB
Minimum order quantity:: 1000 pieces
Supply Ability:: 300000 pieces / Month
Country of Origin:: Ningbo/Shanghai

Product Description
Basic Information

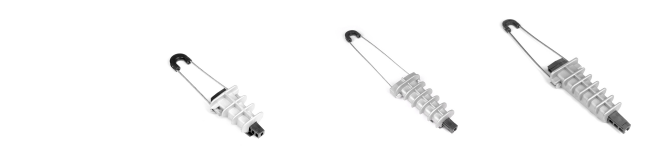

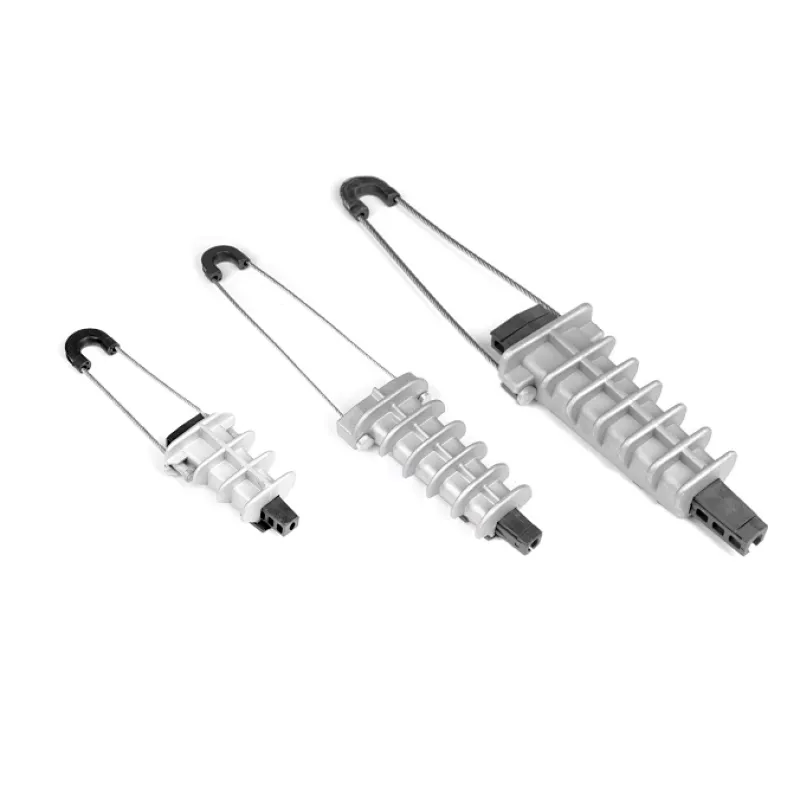

Dead-end Anchoring clamp for aerial bundled cable -Aluminum Alloy body

Equal to	PAL 1000	PAL 1500	PAL 2000
Models	1AN16.35-*	1AN50.70-*	1AN95.120-*
Cable range (mm2)	16-35	50-70	95-120
Core No.	1	1	1
MBL (daN)	1000	1500	1800
Remarks
* add"FA"mean steel rope, add"SS"mean stainless steel rope

Description:

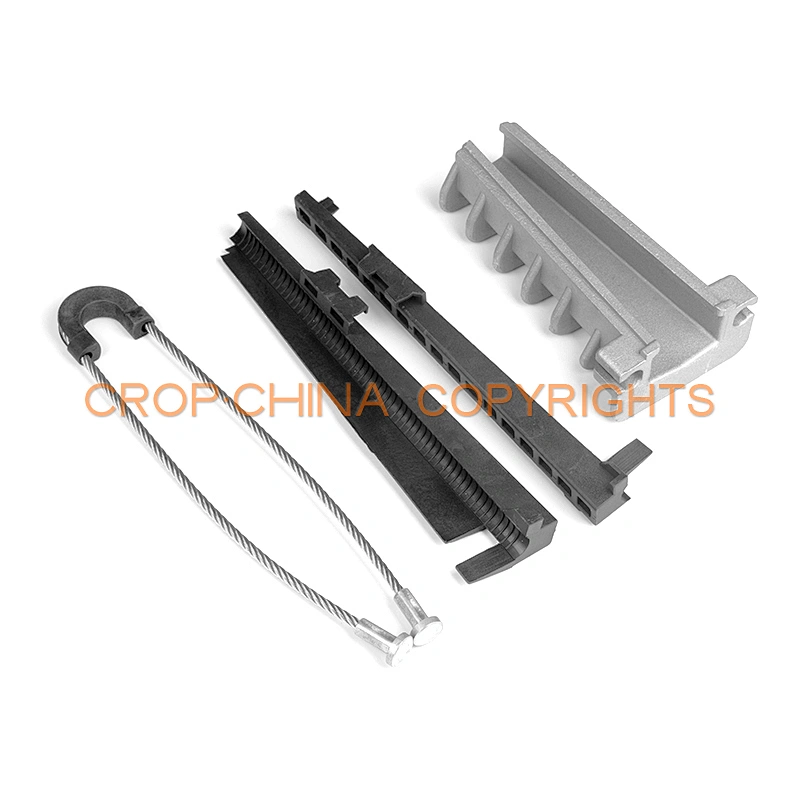

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.

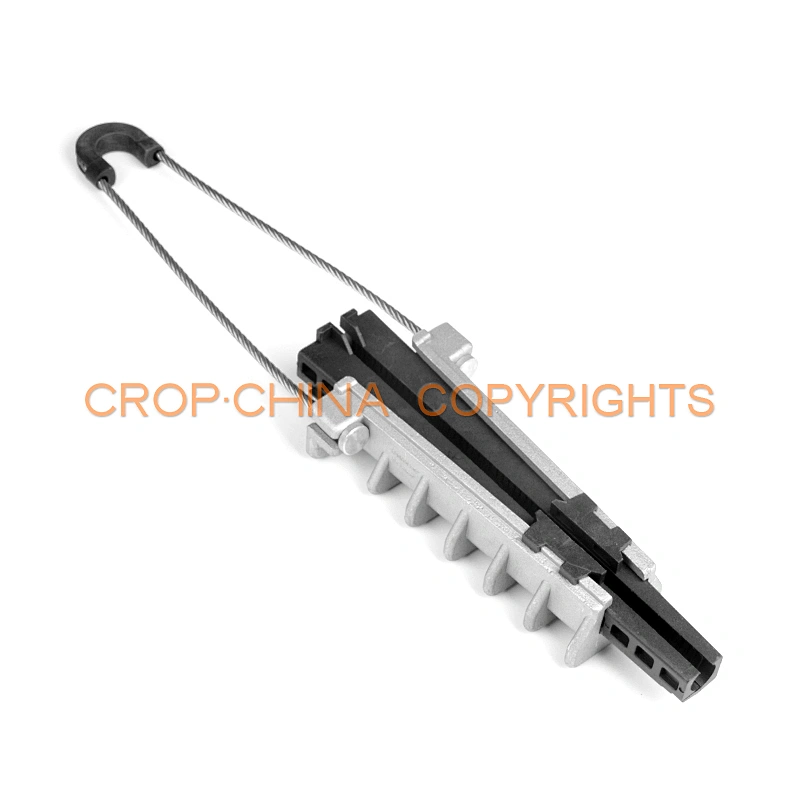

One core Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting.Pilot wires or street lighting conductor are led alongside the clamp.The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Standard: NFC 33-042.

Material:

Clamp made of high strength aluminum alloy

wegde core are made of weather and UV resistant polymer plastic
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS)

Features:

Tool free installation with wedges sliding inside the body
Easy to open bail permits fixing to brackets and pigtails
Adjustable length of bail in three steps
