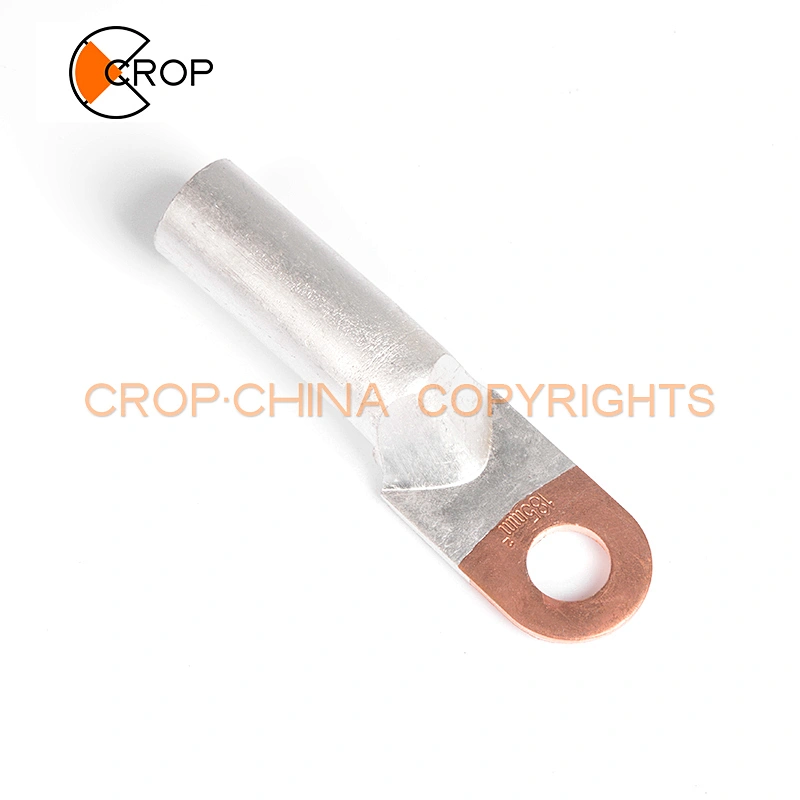

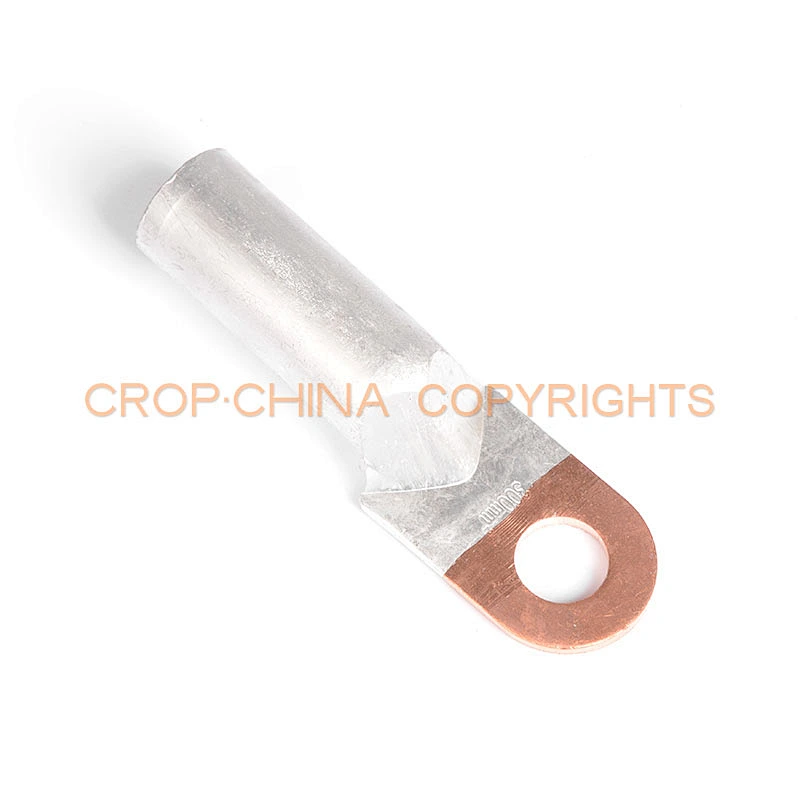

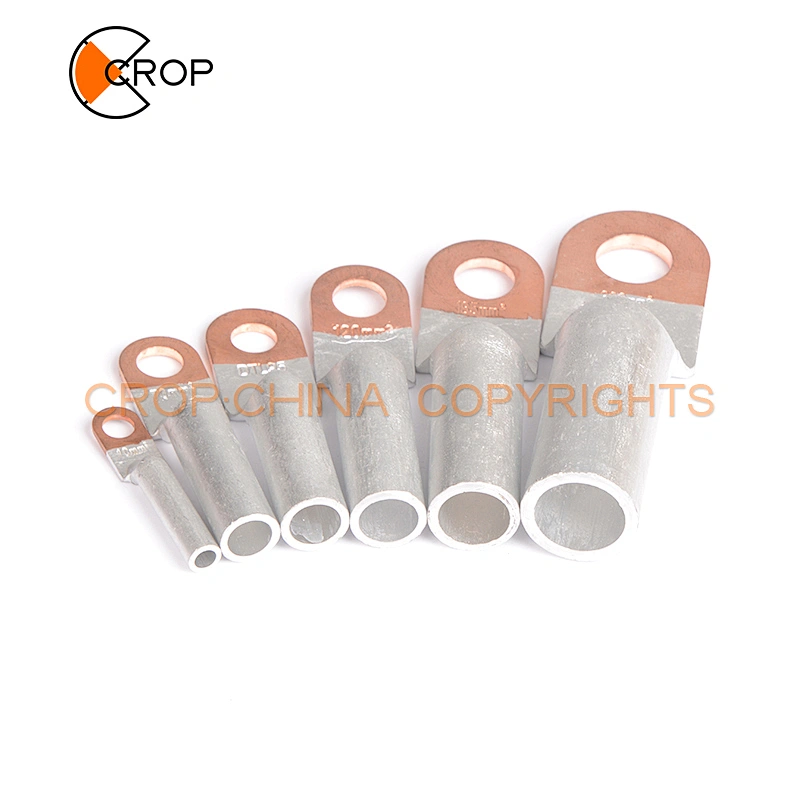

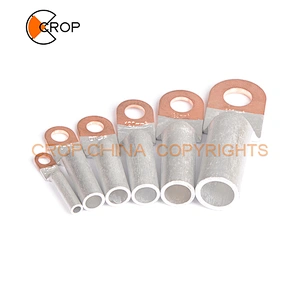

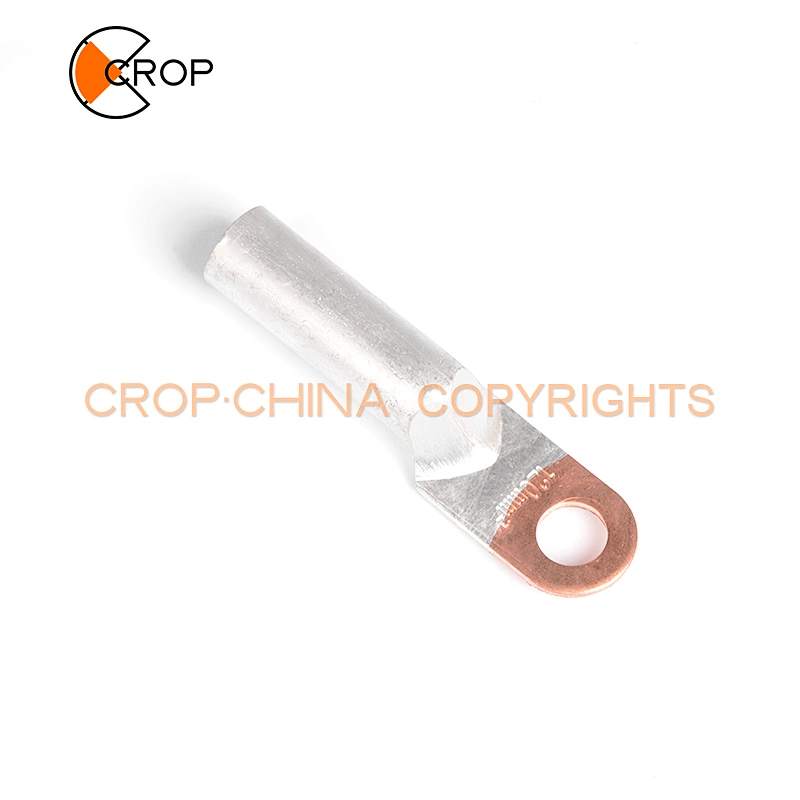

Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal
Yueqing CROP ring type compression terminal

Yueqing CROP ring type compression terminal

Model NO.
DTL1
Delivery:
FOB
Minimum order quantity:
1000 pieces
Supply Ability:
300000 pieces / Month
Country of Origin:
Any port of china
Quantity:

Yueqing CROP ring type compression terminal

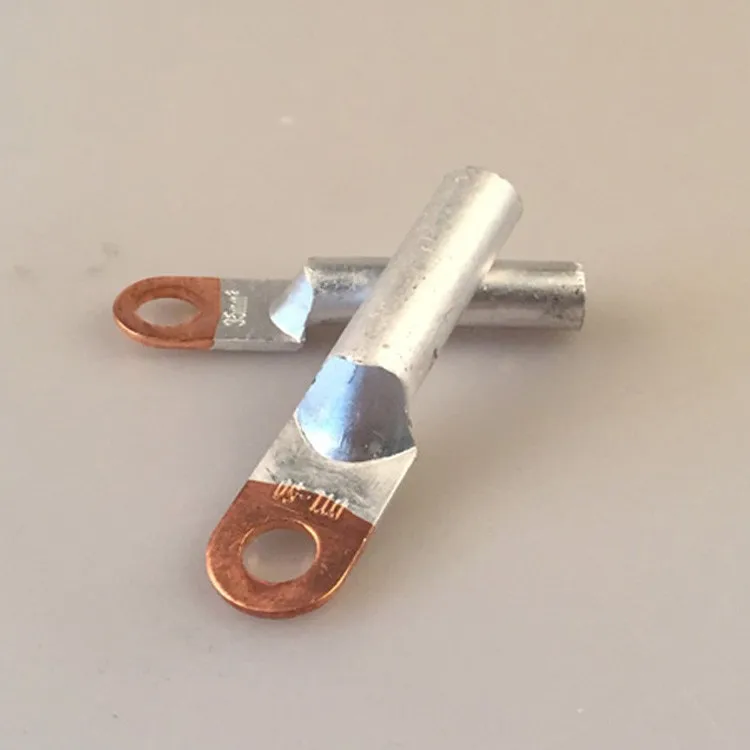

PRODUCT DISPLAY.jpg

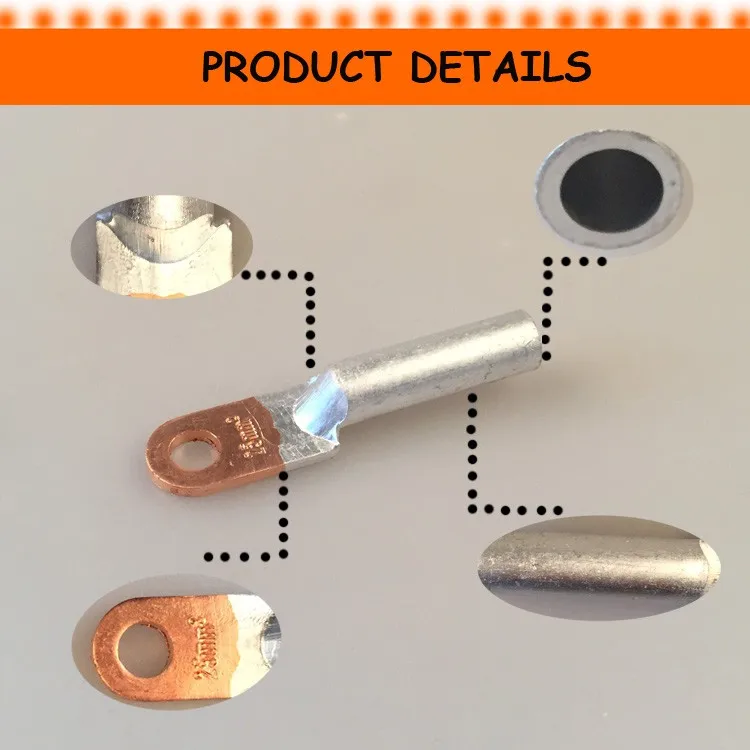

PRODUCT DETAILS.jpg

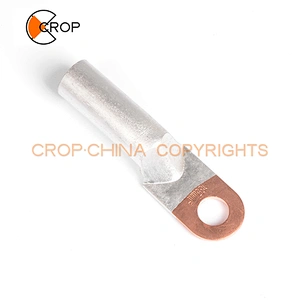

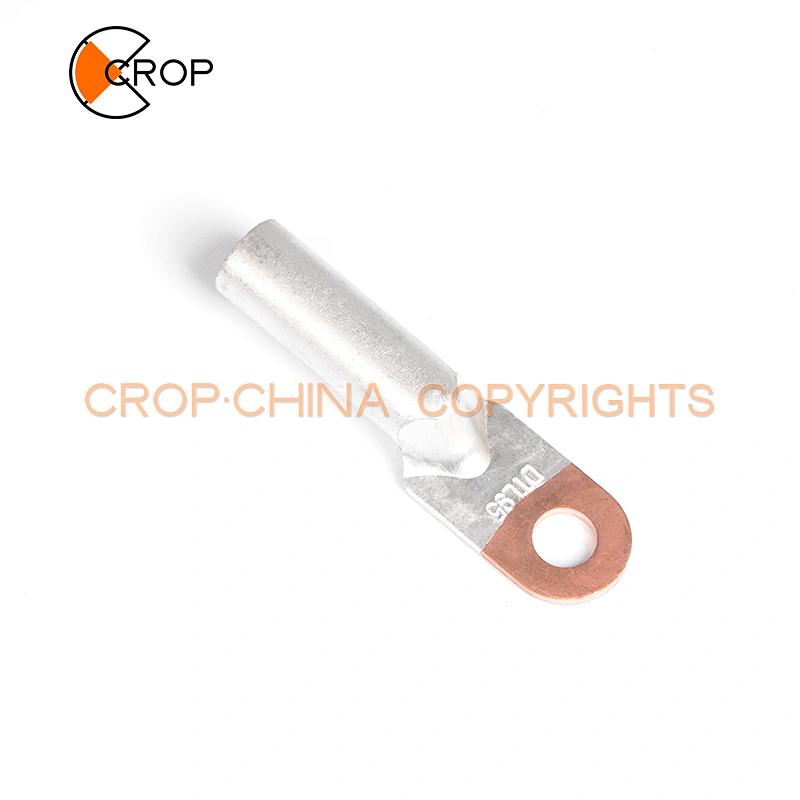

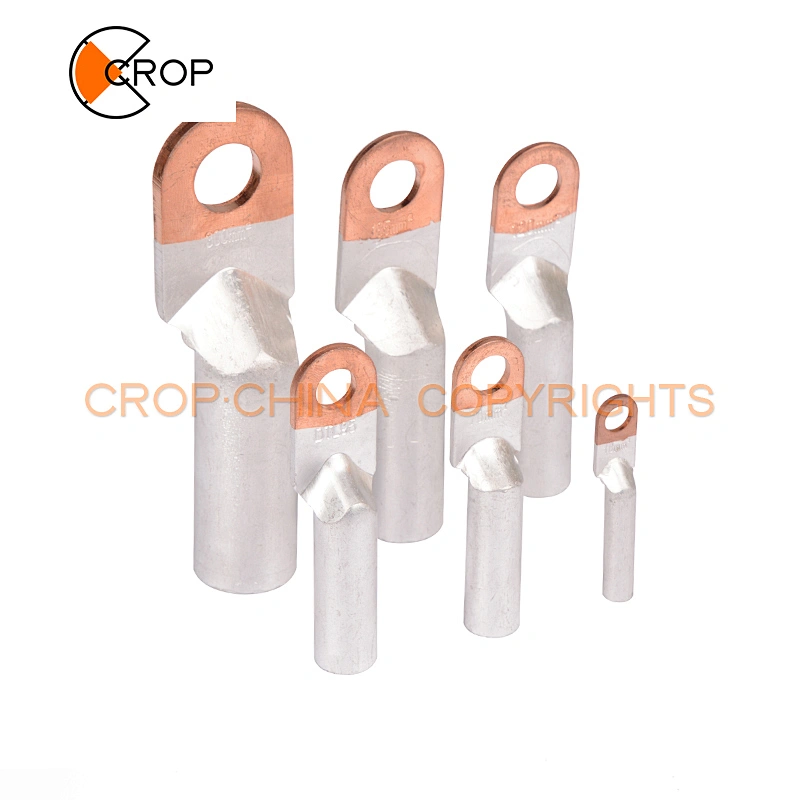

*1.DTL sereies of copper-aluminum wiring terminals are suitable for transition of the circular aluminum wires

*2. For hemicycle-sectoraluminum wire,power supply cable in the distribution equipment

*3.Forcopper terminals of the electrical equipment.

*4.The material of aluminum and copper made of L3 and T2.

DRAWING
DTL1 (1).png
DETAILED PARAMETERS

ITEM NO

φ

D

d

L

L1

B

DTL1-10

8.5

10

6

68

28.0

16.0

DTL1-16

8.5

11

6

70

30.0

16.0

DTL1-25

8.5

12

7

75

34.0

18.0

DTL1-35

10.5

14

8.5

85

38.0

20.5

DTL1-50

10.5

16

9.8

90

40.0

23.0

DTL1-70

12.5

18

11.5

102

48.0

26.0

DTL1-95

12.5

21

13.5

112

50.0

28.0

DTL1-120

14.5

23

15

120

53.0

30.0

DTL1-150

14.5

25

16.5

126

56.0

34.0

DTL1-185

16.5

27

18.5

133

58.0

37.0

DTL1-240

16.5

30

21

140

60.0

40.0

DTL1-300

21.0

34

23.5

160

65.0

50.0





  • Place of Origin:Zhejiang,China (Mainland)
  • Brand Name:CROP
  • Model Number:DTL1
  • Type:Lug
