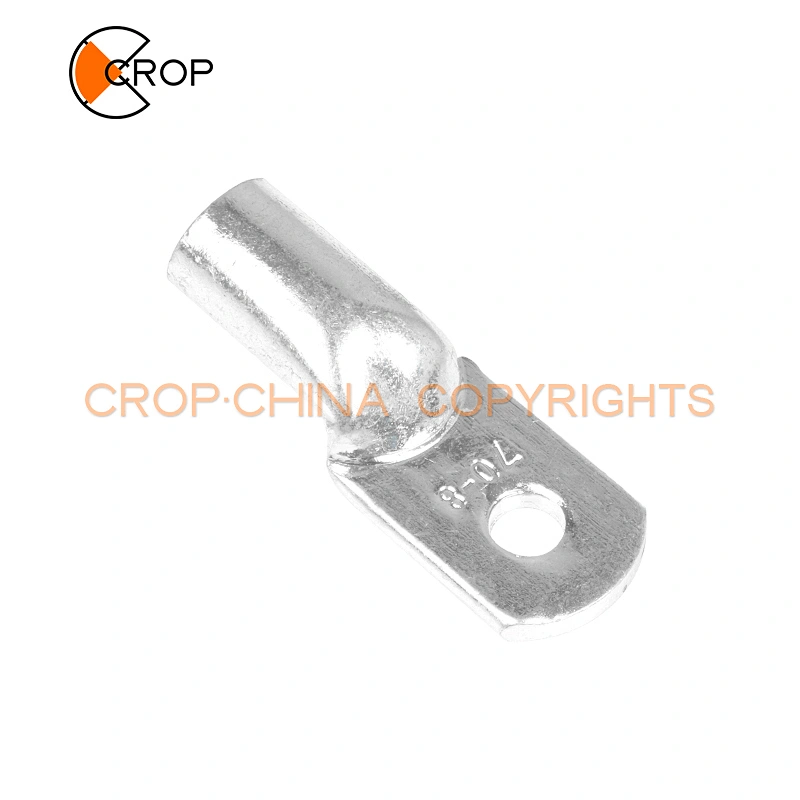

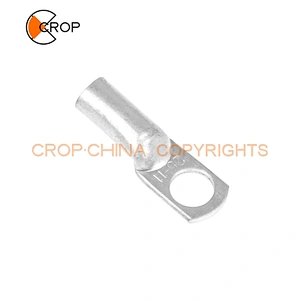

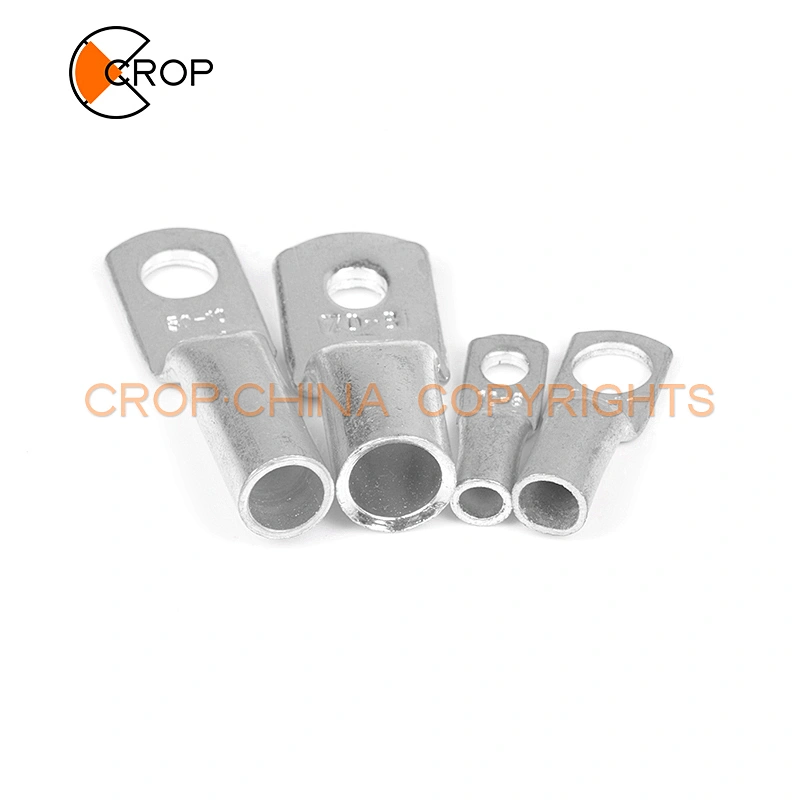

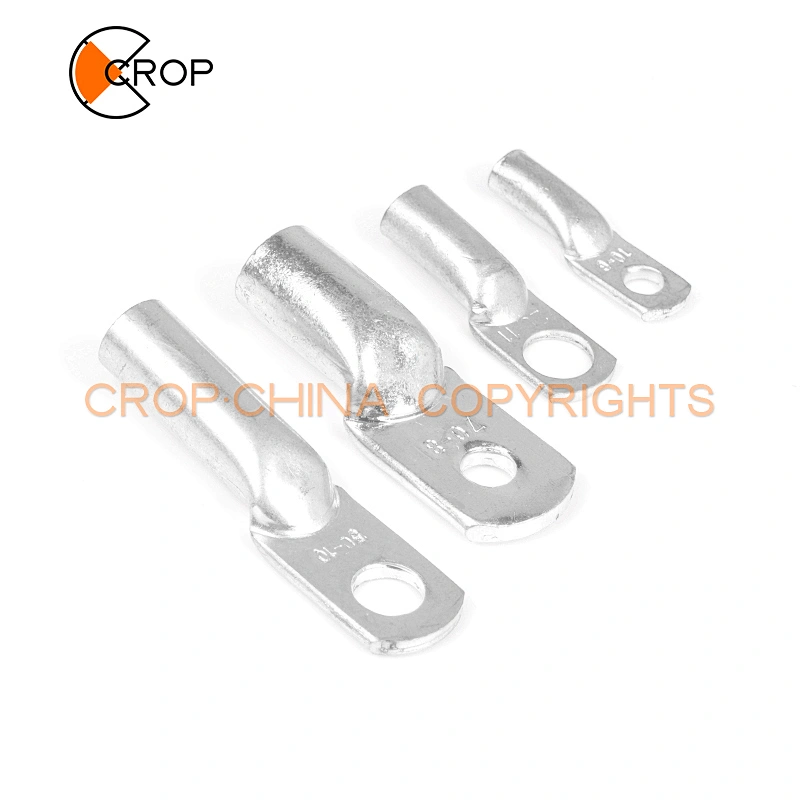

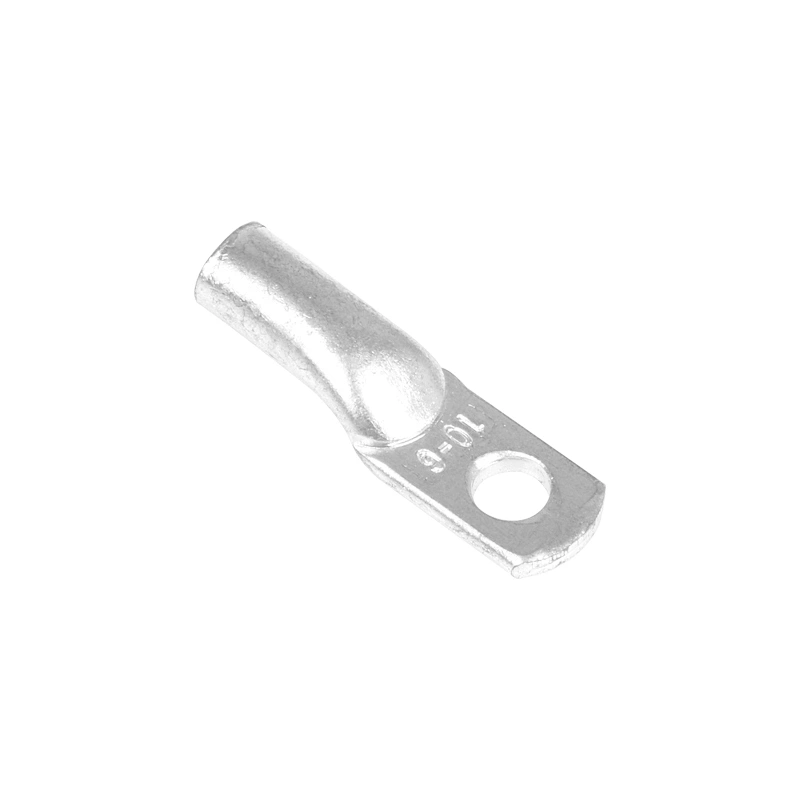

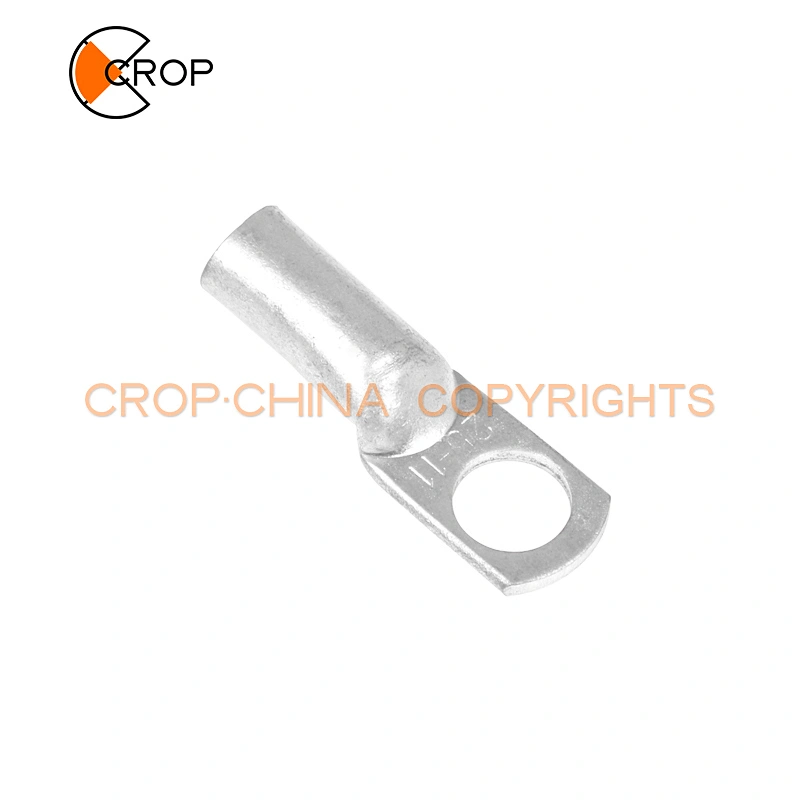

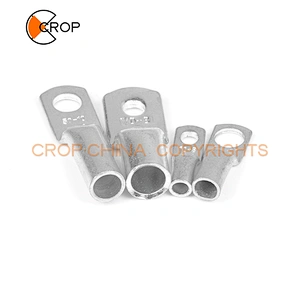

JGA Copper Tinned Cable Lug / Crimping Terminal Lug
- Model NO.:
- JGA
- Delivery:
- FOB
- Minimum order quantity:
- 500 pieces
- Supply Ability:
- 300000 pieces / Month
- Country of Origin:
- Ningbo,Shanghai
Description
DTL series of copper-aluminum wiring terminal are suitable for transition of the circular aluminum wires,hemicycle-sector aluminum wire, power supply cable in the distribution equipment and copper terminals of the electrical equipment.
Material
Copper Tinned; 99.9% pure copper tube T2 and with Tinned coating.
| Model | Ø | D(mm) | d(mm) | L(mm) |
| JGA-1.5 | Ø4.2 Ø5.5 | 3.5 | 2.1 | 18 |
| JGA-2.5 | Ø4.2 Ø5.2 Ø6.2 | 4 | 2.6 | 19 |
| JGA-4 | Ø5.2 Ø6.2 | 4.8 | 3.4 | 21 |
| JGA-6 | Ø5.2 Ø6.2 Ø8.2 | 6 | 4.3 | 24 |
| JGA-10 | Ø6.2 Ø8.2 Ø10.5 | 6.8 | 5.2 | 25.5 |
| JGA-16 | Ø6.2 Ø8.2 Ø10.5 | 8 | 6.5 | 30.5 |
| JGA-25 | Ø6.2 Ø8.2 Ø10.5 | 9 | 7.5 | 34 |
| JGA-35 | Ø6.2 Ø8.2 Ø10.5 Ø12.5 | 10.5 | 8.2 | 38 |
| JGA-50 | Ø8.2 Ø10.5 Ø12.5 | 12.5 | 10 | 45 |
| JGA-70 | Ø8.2 Ø10.5 Ø12.5 | 14.5 | 12 | 50 |
| JGA-95 | Ø8.2 Ø10.5 Ø12.5 | 17 | 14 | 55.5 |
| JGA-120 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 19 | 15 | 63 |
| JGA-150 | Ø10.5 Ø12.5 Ø14.5 Ø16.5 | 21 | 17 | 71 |
| JGA-185 | Ø12.5 Ø14.5 Ø16.5 | 23 | 19 | 78 |
| JGA-240 | Ø12.5 Ø14.5 Ø16.5 | 26 | 21 | 92 |
| JGA-300 | Ø16.5 Ø20.5 | 30 | 24 | 102 |
| JGA-400 | Ø16.5 Ø20.5 | 34 | 27 | 113 |
| JGA-500 | Ø16.5 Ø20.5 | 38 | 30 | 123 |
| JGA-630 | 20.5 | 45 | 35 | 135 |
