Compression cable MJPT Pre-insulated sleeve / connector

Compression cable MJPT Pre-insulated sleeve / connector

Model NO.:: MJPT
Delivery:: FOB
Minimum order quantity:: 1000 pieces
Supply Ability:: 100000 pieces / Month
Country of Origin:: Ningbo

Quantity:

Product Description
Basic Information

Compresion cable MJPT Pre-insulated sleeve / connector

Material:

Aluminum alloy

Product Property:

MJPT is designed to connect the insulated cable (include ABC cable) in aerial distribution network.

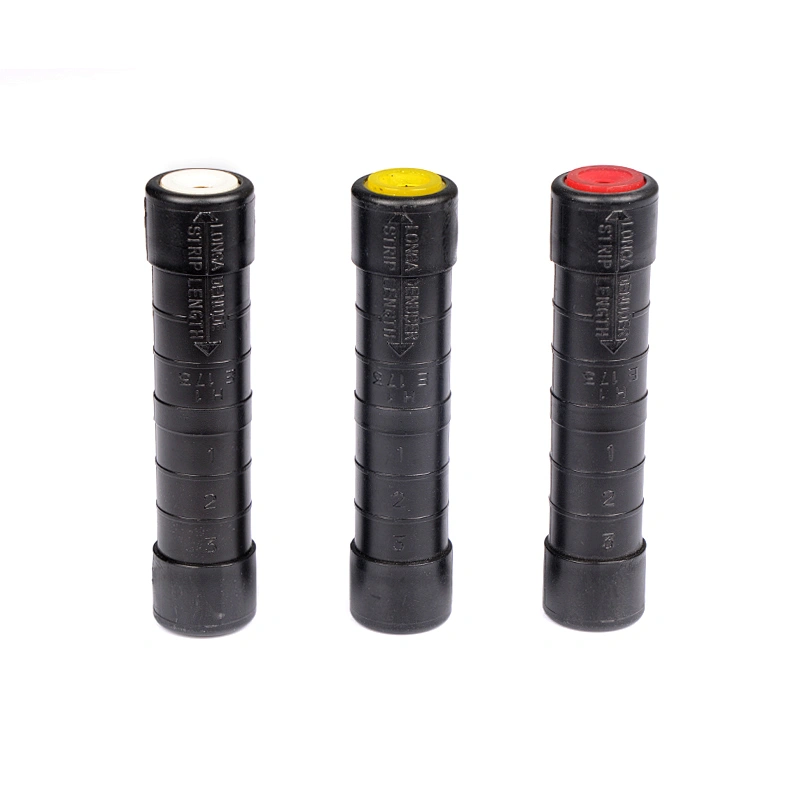

It is in accordance with NFC33-021.The sleeve is with some tension. And its cap can prevent the water into the barrel.It is colored differently to distinguish the cable sizes. Marked With type, cable size, die size, inner cable length and number of crimping.

Application:
These pre-insulated connectors are suitable for insulated stranded aluminium conductors.Three connector versions are available to meet the mechanical load requirements for selfsupporting system and systems with a neutral messenger.
Stripped cables are inserted up to the block in the connector. Crimping according to the marks with appropriate crimping die over the insulation. The electrical contact and the sealing by the elastomeric ring are achieved during the crimp process.

$_64A9[CM_[%X]N72G6UD{99.png$

Type	Cable Size(mm)		Plastic Sleeve Diameter(mm)	Length (mm)	Color
Type	A	B	Plastic Sleeve Diameter(mm)	Length (mm)	Color
MJPT 16/16	16	16	17.3	70	Blue
MJPT 25/25	25	25	17.3	70	Orange
MJPT 35/35	35	35	21	99.5	Red
MJPT 50/50	50	50	21	99.5	Yellow
MJPT 54.6/54.6	54.6	54.6	21	99.5	Black
MJPT 70/70	70	70	21	99.5	White
MJPT 95/95	95	95	23.5	137	Gray
