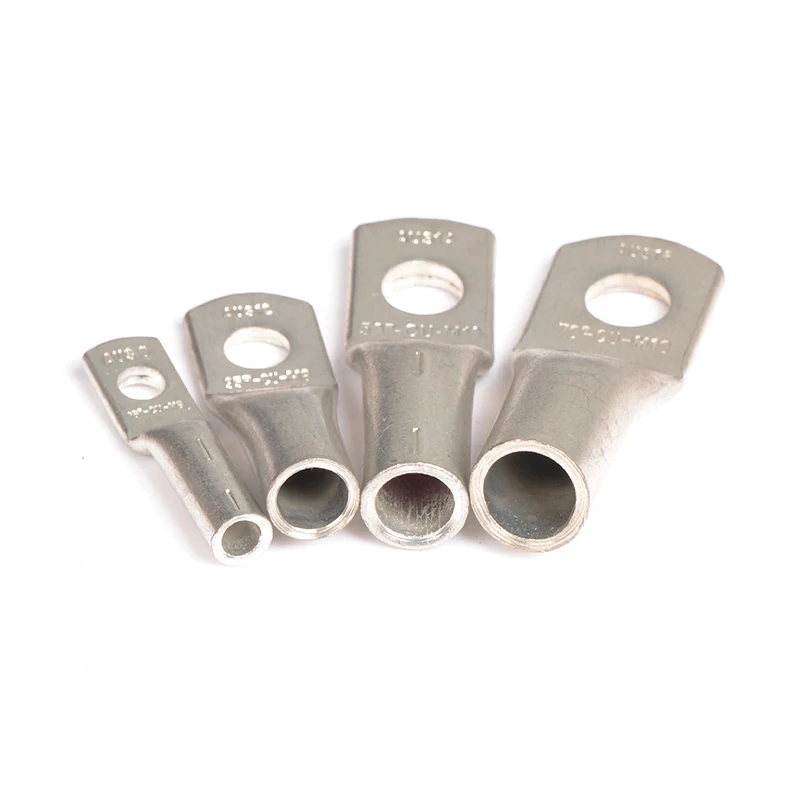

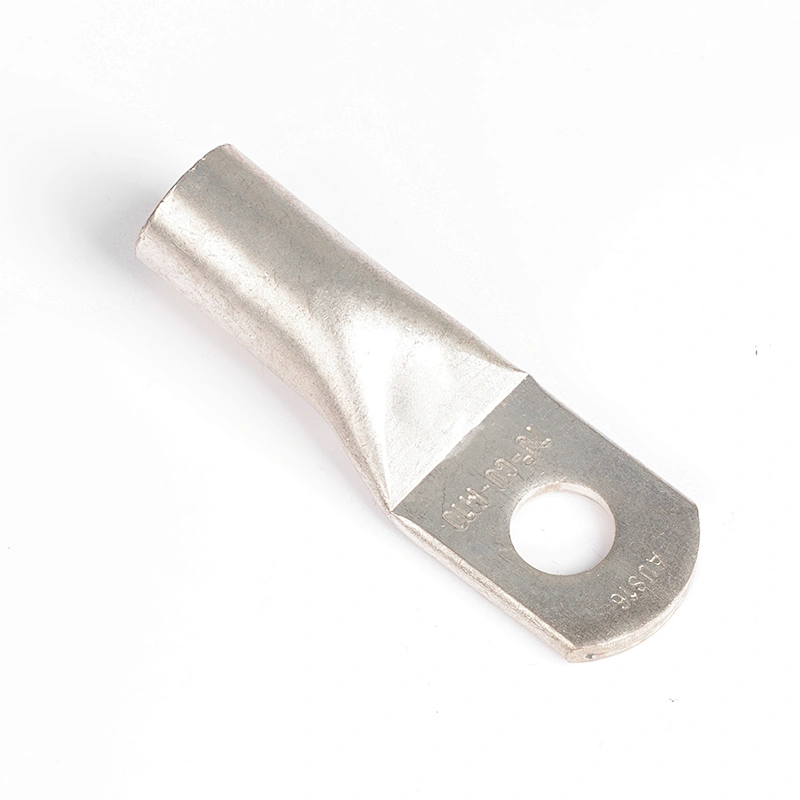

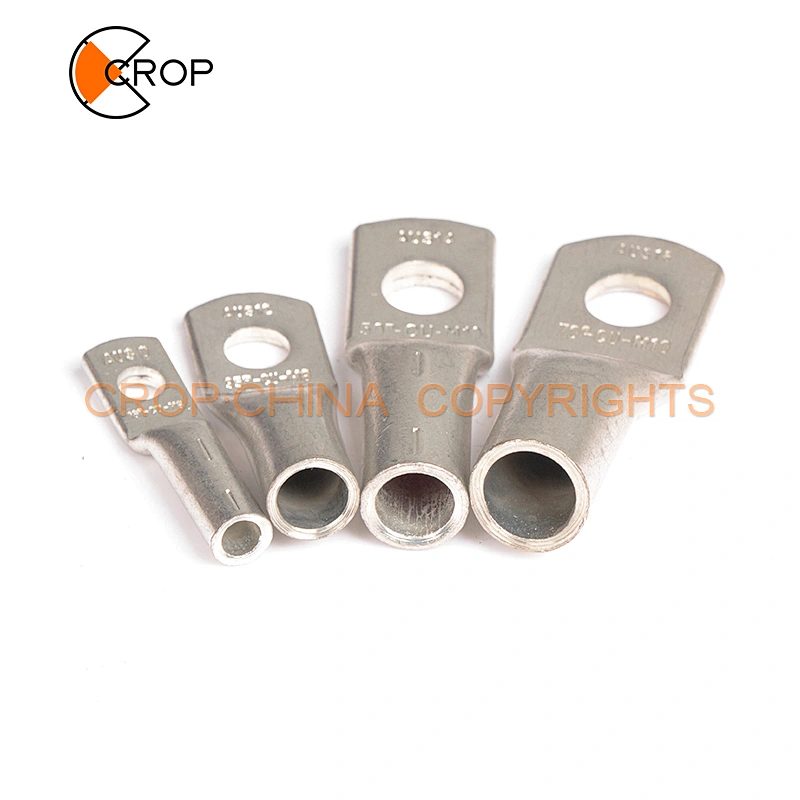

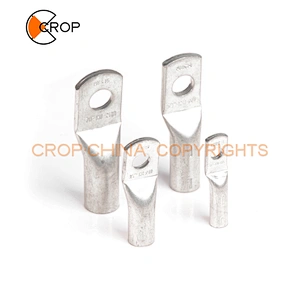

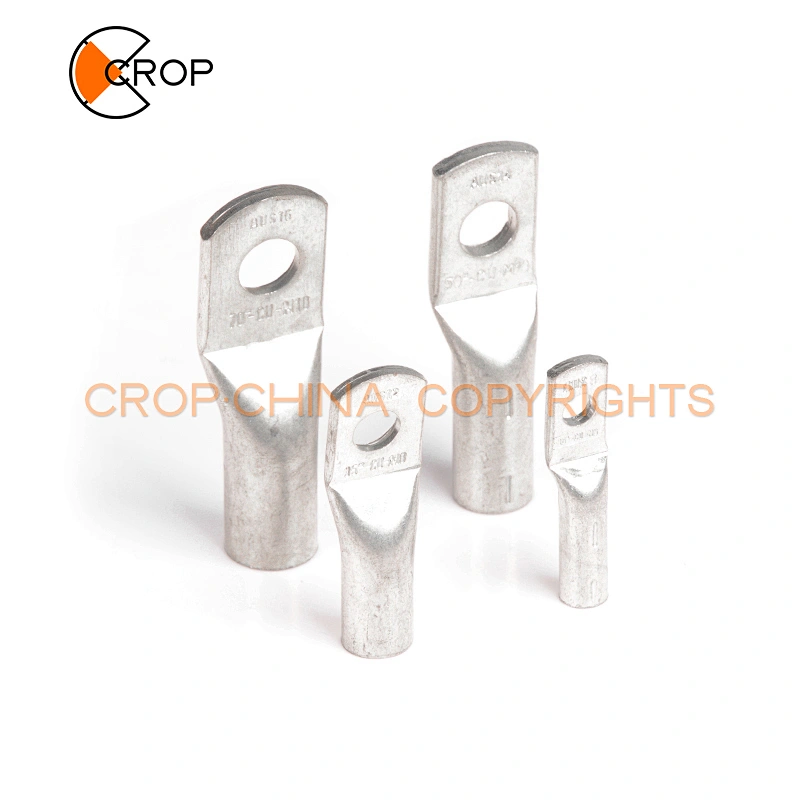

AUS cable connector/cable lug/copper tinned terminals
Description
AUS terminals are suitable for the connection of copper conductor section from 1.5 to 1000sq.mm.
In power cable with electronic equipment,terminals are made of with 99.9% pure copper tube T2 and with Tinned coating.
Working temperature:-55°C to 150°
Material
Copper Tinned; 99.9% pure copper tube T2 and with Tinned coating.
| Model | Ø | D(mm) | d(mm) | L(mm) |
| AUS-6 | Ø5.2, Ø6.2 | 5.5 | 3.8 | 31.5 |
| AUS-10 | Ø6.2, Ø8.2 | 6 | 4.5 | 34.5 |
| AUS-16 | Ø6.2, Ø8.2, Ø10.5 | 8.5 | 5.5 | 43.5 |
| AUS-25 | Ø6.2, Ø8.2, Ø10.5 | 10 | 7 | 48 |
| AUS-35 | Ø6.2, Ø8.2, Ø10.5, Ø12.5 | 12.5 | 8.2 | 52 |
| AUS-50 | Ø8.2, Ø10.5, Ø12.5 | 14.5 | 10 | 64 |
| AUS-70 | Ø8.2, Ø10.5, Ø12.5 | 16.5 | 11.5 | 68 |
| AUS-95 | Ø10.5, Ø12.5 | 19 | 13.5 | 78 |
| AUS-120 | Ø12.5, Ø16.5 | 21 | 15.5 | 86 |
| AUS-150 | Ø12.5, Ø16.5 | 23.5 | 17 | 94 |
| AUS-185 | Ø16.5 | 25.5 | 19 | 101 |
| AUS-240 | Ø16.5 | 29 | 21.5 | 111 |
| AUS-300 | Ø16.5, Ø20.5 | 32 | 24.5 | 119 |
