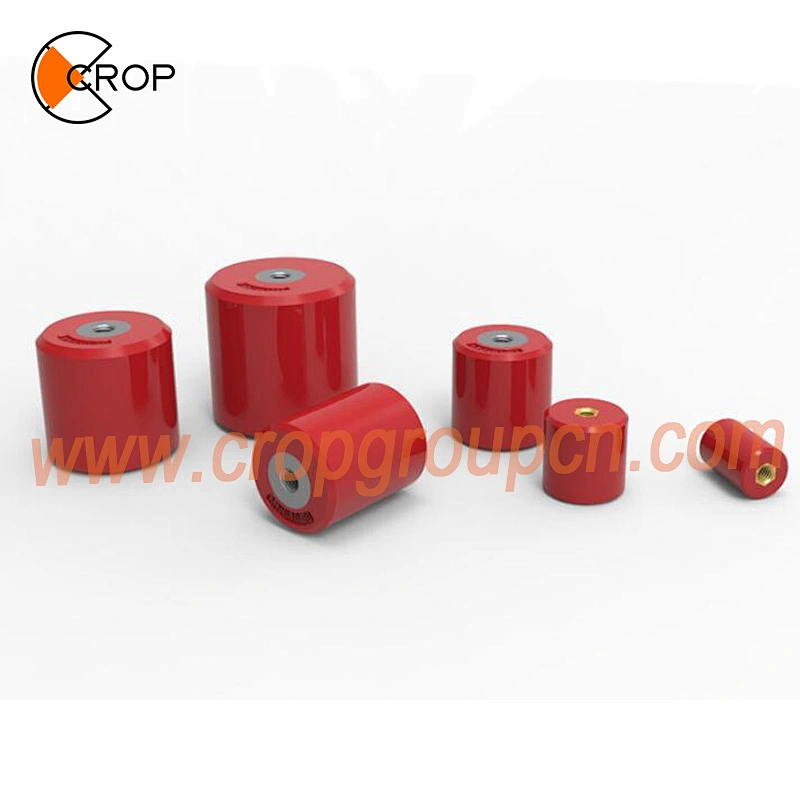

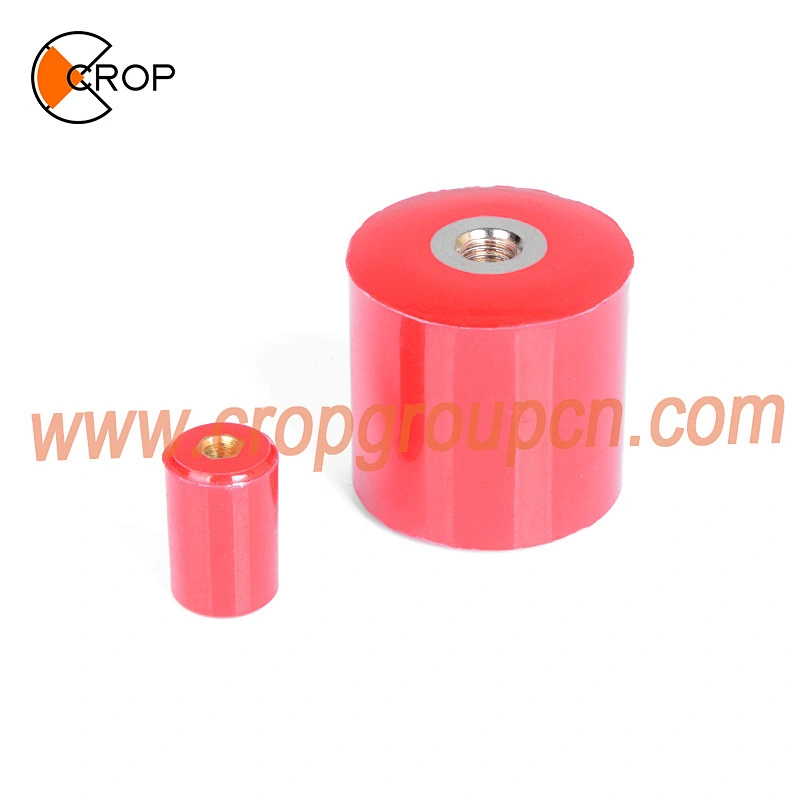

High Quality Low Voltage Electrical Copper Screw Epoxy Busbar Insulator
Description
Housing Material: BMC/SMC
Insert:thread brass nut
Operating Temp.: -40ºC--+140ºC
Color:Red ,other color can be made according to need
Properity:electrical resistance, hear resistance, fire resistance, low shrinkage, water resistance
Advantages:The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.
| CROP code | Hight(mm) | Nut Size | Thread Depth |
| SM20 | 20 | M5 | 7mm |
| SM-255 | 25 | M6 | 9mm |
| SM-25 | 25 | M6 | 9mm |
| SM-30 | 30 | M6/M8 | 9mm/10mm |
| SM-35 | 35 | M8/M10 | 10mm/12mm |
| SM-40 | 40 | M8/M10 | 10.5mm/13.5mm |
| SM-45 | 45 | M8 | 10.5mm |
| SM-51 | 51 | M8/M10/M12 | 10.5mm/13.5mm |
| SM-65 | 65 | M10 | 13.5mm |
| SM-70 | 70 | M10 | 13.5mm |
| SM-76 | 76 | M10 | 13.5mm |
| SM-100 | 100 | M10 | 18mm |
| CROP code | Hight(mm) | Nut Size | Thread Depth |
| ASM-76 | 76 | M10 | 13mm |
| SM-7100 | 35 | M8 | 10mm |
| SM-7105 | 38 | M6/M8 | 9mm/10mm |
| SM-7110 | 45 | M8/M10 | 10mm/13mm |
| SM-7120 | 50 | M10 | 13mm |
| SM-7160 | 60 | M10 | 13mm |
| ASM-20 | 20 | M5 | 7mm |
| ASM-35 | 35 | M8 | 10mm |
| ASM-51 | 51 | M8 | 10mm |
| CROP code | Hight(mm) | Nut Size | Thread Depth |

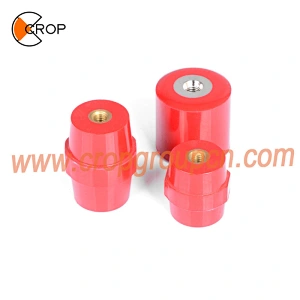

| MNS-20x20 | 20 | M5/M6 | 7mm |
| MNS-20x30 | 30 | M6/M8 | 10mm |
| MNS-30x30 | 30 | M6/M8 | 10mm |
| MNS-40x40 | 40 | M8/M10 | 11mm |
| MNS-40x50 | 50 | M8/M10 | 11mm |
| MNS-50x50 | 50 | M8/M10 | 11mm |
| MNS-60x40 | 40 | M10/M12 | 11mm |
| MNS-60x60 | 60 | M10/M12 | 11mm |
| U45355 | 35 | M10/UNC3/8-16 | 12mm |
