- Place of Origin:CN;ZHE
- Brand Name:CROP
- Model Number:FNB30/*
DEAD-END ANCHORING CLAMP FOR AERIAL BUNDLED CABLE
The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.
One core Anchor clamps are design to supporting the neutural messenger, the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Standard: NFC 33-041.
Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).
Tool free installation with wedges sliding inside the body.
Easy to open bail permits fixing to brackets and pigtails Adjustable length of bail in three steps.
|Cable Tie Width Max||9||9||/|
|Remarks||* cable tie size||* cable tie size|

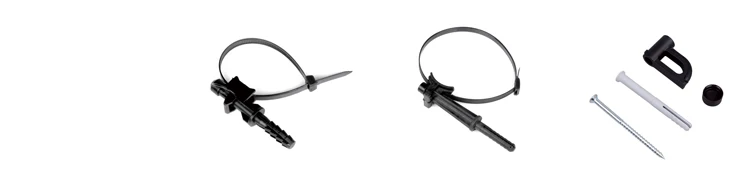

Many Kinds of Tension Clamps
Bracket & Accessories
