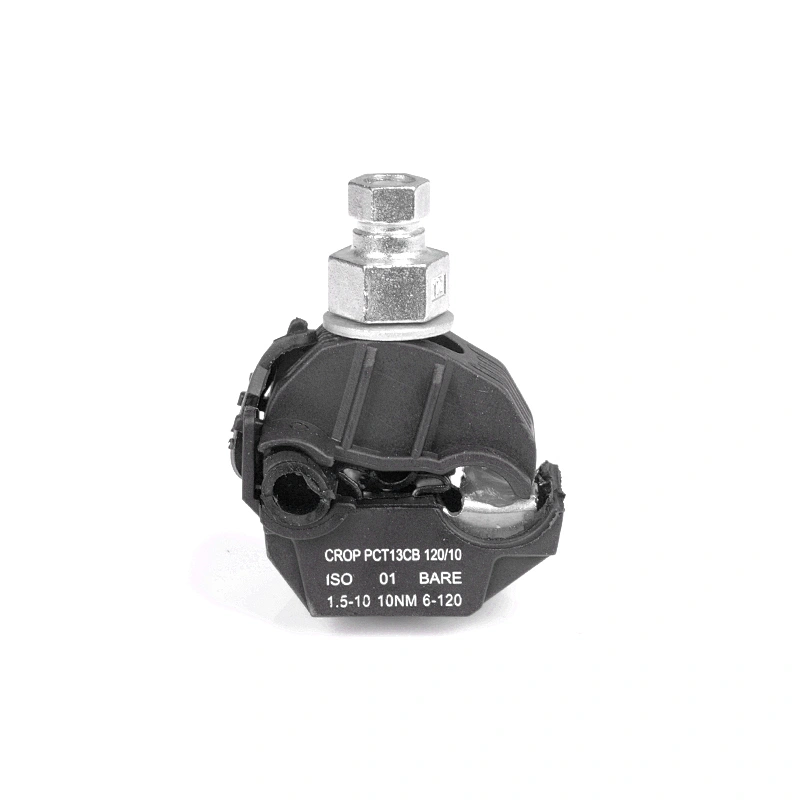

| Models | PCT13CB 120/10 | PCT13CB 95/50 | PCT13CB 95/50 | PCT13CB 150/50 | PCT13CB 95/95 | PCT13CB 150/150 |
| Main Line(mm2) | (B) 6-120 | 16-95 | (B)16-95 | (B) 50-150 | (B)16-95 | (B) 16-150 |
| Service Line (mm2) | 1.5-10 | (B)4-50 | 4-50 | 4-35 | 16-95 | 16-150 |
| PRINCIPAL AWG | (desnudo) #10 - 4/0 | #5 - 4/0 | (desnudo) #5 - 4/0 | (desnudo) 1/0- 300 | (desnudo) #5 - 4/0 | (desnudo) #5 - 300 |
| DERIVADO AWG | #16 - #7 | (desnudo)#12 - #2 (#1) | #12 - #2 (#1) | #12 - #2 | #5 - 4/0 | #5 - 300 |
| Bolt No. | 1 | 1 | 1 | 1 | 1 | 1 |
| Torque (Nm) | 10NM | 17NM | 17NM | 23NM | 23NM | 23NM |
| Remarks | ISO to Bare | ISO to Bare | ISO to Bare | ISO to Bare | ISO to Bare | ISO to Bare |
