Self adjusting insulated straight plastic tension clamp for insulating conductor

Self adjusting insulated straight plastic tension clamp for insulating conductor

  • Model NO.: APA-25-*-500
  • FOB Price:USD 0.50-1.00 / pieces
  • Min order:1000 pieces
  • Accept Min order:Yes
  • Supply Ability:300000 pieces / Month
  • Country of Origin:Ningbo/Shanghai
  • Place of Origin:CN;ZHE
  • Brand Name:CROP
  • Model Number:APA-25-*-500

.jpg

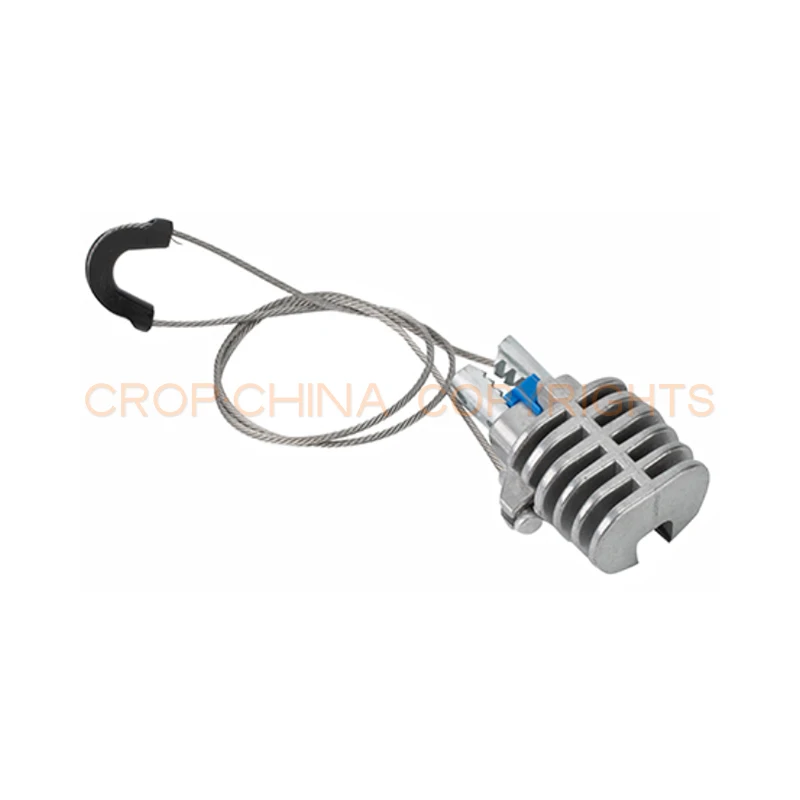

Self adjusting insulated straight plastic tension clamp for insulating conductor

Description

For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.

Material

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

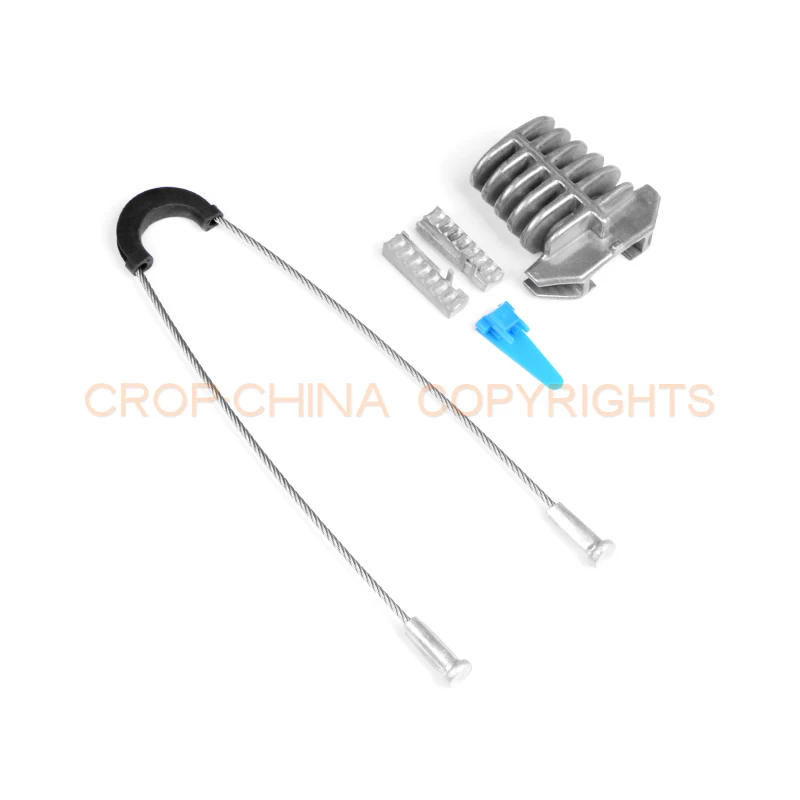

A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.


ModelsAPA-25-*APA-25-*-500APA-50-*APA-50-*-500
Cable Diameter(mm)3~73~76~106~10
Min Tension (daN)70070010001000
L(mm)210500210500

(*)Add"FA"mean steel rope, add"SS"mean stainless steel rope

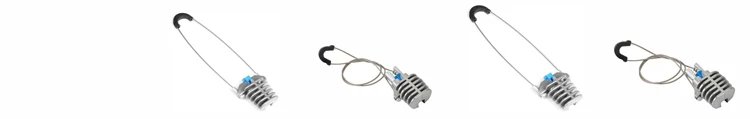

Many Kinds of Tension Clamps.jpg
