PA 1000/1500/2000 Electrical cable fitting Aluminium Alloy Metal adjustable pole clamp

PA 1000/1500/2000 Electrical cable fitting Aluminium Alloy Metal adjustable pole clamp

  • Model NO.: PA Dead End Clamp
  • FOB Price:USD 0.10-0.90 / pieces
  • Min order:1000 pieces
  • Accept Min order:Yes
  • Supply Ability:300000 pieces / Month
  • Country of Origin:Ningbo/Shanghai
  • Place of Origin:CN;ZHE
  • Brand Name:CROP
  • Model Number:PA Dead End Clamp

.jpg

PA 1000/1500/2000 Electrical cable fitting Aluminium Alloy Metal adjustable pole clamp

Description

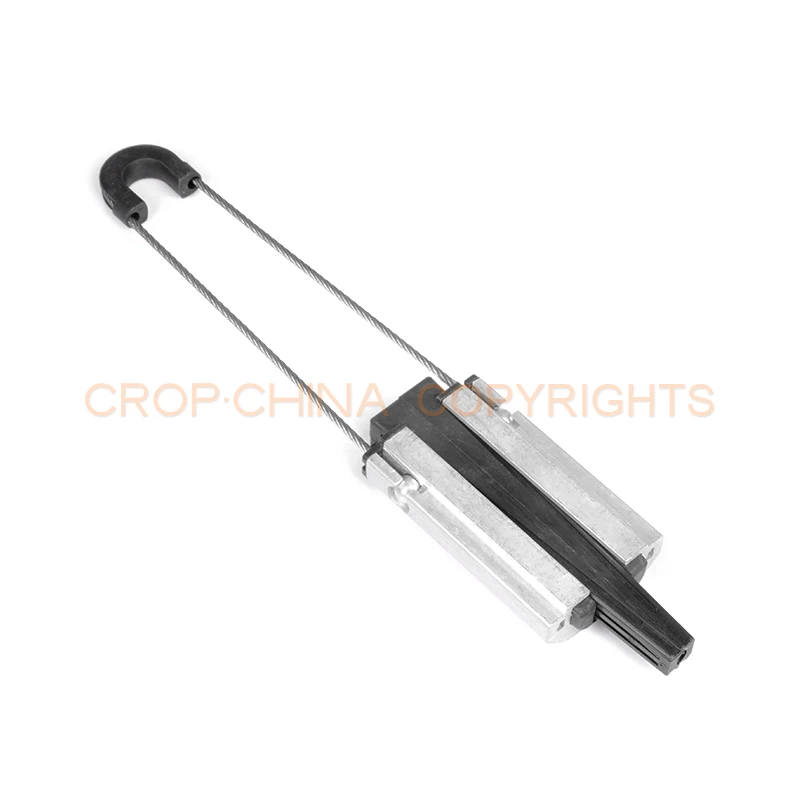

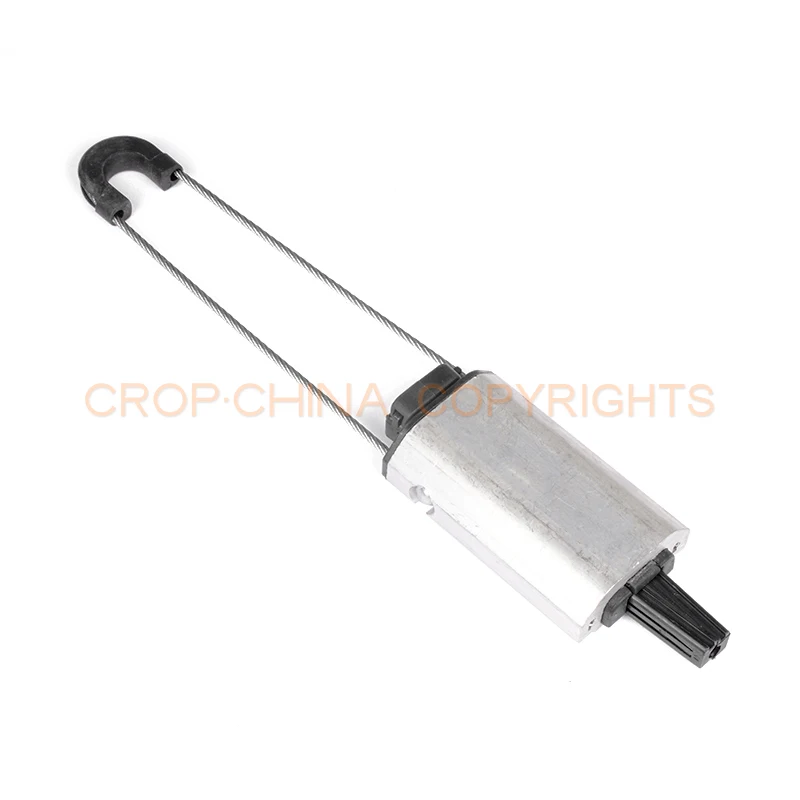

PA 1000/1500/2000 Electrical cable fitting Aluminium Alloy Metal adjustable pole clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.
One core Anchor clamps are design to supporting the neutural messenger, the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Standard: NFC 33-041.

Material

High strength aluminium alloy, nylon plus fiber glass,stainless steel
Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in insulating material ensures the double insulation for the neutral core and advice damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, their connection allows an easier locking on the body of the clamp.

Tool free installation with wedges sliding inside the body.
Easy to open bail permits fixing to brackets and pigtails Adjustable length of bail in three steps.


ModelsPA-1000-*PA-1500-*PA-2000-*
Cable range (mm2)25-3550-7070-95
Cable diameter(mm)8~1111~1414~18
Core No.111
MBL (daN)100015001500

(*)Add"FA"mean steel rope, add"SS"mean stainless steel rope
