Insulation Piercing Connector , CRT 041

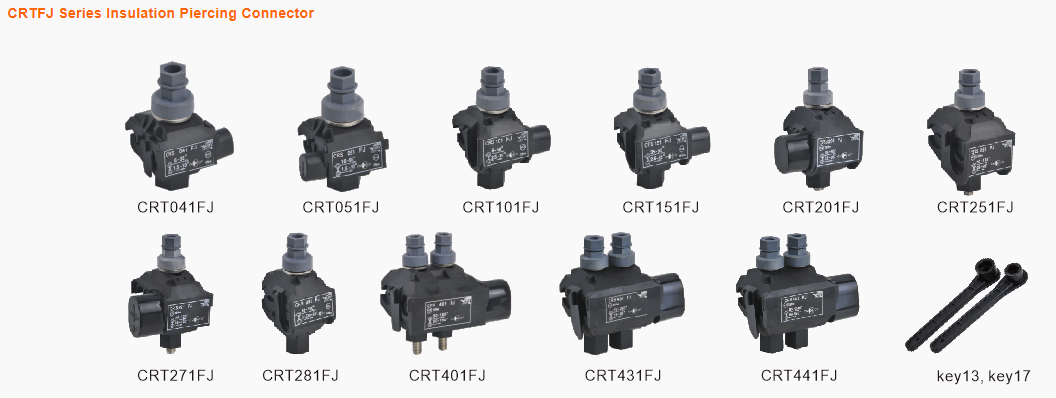

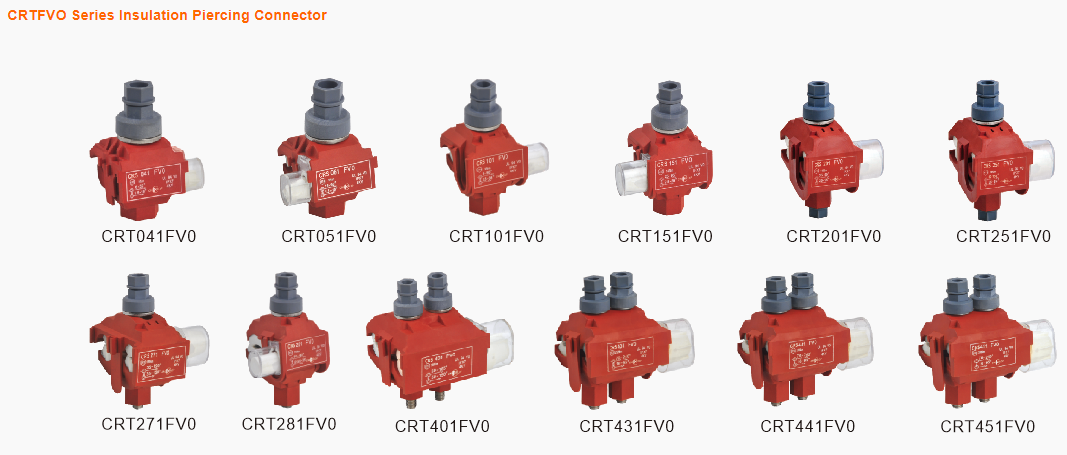

Insulation Piercing Connector CRT series

Description
The Factory price electrical fittings Insulation Piercing Connector CRT are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed (fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned , Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip glavanized steel, 8.8 grade
Washer, Nut: Hot dip glavanized steel
Fuse nut: Zinc alloy

Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic,suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer
